| Place of Origin: | CHINA |
|---|---|
| Marka adı: | YINGDA |
| Sertifika: | ISO |
| Model Number: | FPG-ST-OS1-0.9-2-W |
| Minimum Order Quantity: | 100 PCS |
| Fiyat: | Negotiable |
| Packaging Details: | 1pc in a plastic bag, customer logo or label design ok |
| Fiber type: | OS1 single mode 9/125 | fiber count: | simplex |
|---|---|---|---|
| cable type: | fiber optic | cable diameter: | 0.9 mm |
| cable length: | 2 Mtrs | connector boot: | black |
| polish mode: | UPC | connector: | ST |
| cable color: | white | OEM: | OK |
| ferrule: | ceramic |

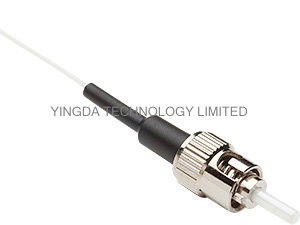

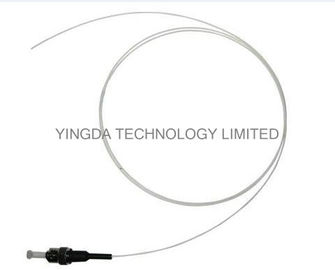

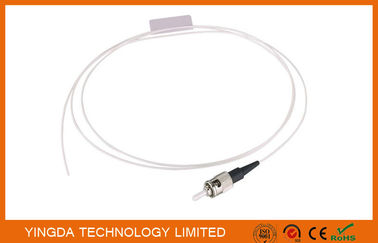

ST UPC SM SX Pigtail, Optic Fiber Pigtails ST Singlemode Simplex White Cable
ST fiber Pigtail is still the most popular Pigtail, it has a bayonet mount and a long cylindrical 2.5 mm
ceramic (usually) or polymer ferrule to hold the fiber. Clearly speaking, The ST fiber Pigtail (Straight
Tip) is a fiber Pigtail which uses a plug and socket which is locked in place with a half-twist bayonet
lock. The ST Pigtail was the first defactor standard for fiber optic cabling and ST fiber Pigtail is one
of the leading fiber Pigtails.
The ST Pigtail has a bayonet-style housing and a long spring-loaded ferrule hold the fiber.
They are available in both multimode or singlemode versions. Horizontally mounted simplex
and duplex adapters are available with metal or plastic housing, with a choice of phosphor
bronze or zirconia split sleeve.
Application
Features
Specification
|
Connector type |
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male |
|
Fiber Type |
9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4 |
|
Cable Type |
Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Single mode Master); ≤ 0.25dB (For Single mode Standard) ; ≤ 0.25dB (For Multi-mode) ; Tested by JDS RM 3750 |
|
Return Loss (For Single mode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeat ability |
±0.1dB |
|
Operating Temperature |
-40°C to 85°C |
|
Geometry Requirement (For Single mode) |
Ferrule End face Radius: 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1 |
Ordering Information
ST / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),
OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
We also offers the epoxy-free ST XPFit Pigtail for quick field termination. The ST is one of
the older generations of Pigtail, but is still widely used for multimode networks, including
LANs for buildings and campuses, welcome inquiry.
