Variable Fiber Optic Attenuator

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası ATTN-MVOA-LCS-02
Min sipariş miktarı 5 PCS
Fiyat Negotiable
Ambalaj bilgileri 1 pc / plastoc blister box or customized
Teslim süresi 3-5 days
Ödeme koşulları T/T or western Union
Yetenek temini 50,000pcs per month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Attenuation 0- -40 dB Variable test wavelength 1260~1620 nm
type mechanical adjustable attenuator Working temperature -40~+85 (℃)
Fiber optic type single-mode,multimode connector type SC ST FC LC MU all ok
polish UPC APC PC connector plug time 1000 times
package 1pc in a blister box connector color green,blue,beige
cable diameter 0.9mm, 2.0mm
Vurgulamak

build out attenuator

,

inline optical attenuator

Mesaj bırakın
Ürün Açıklaması

LC Duplex Mini Module Mechanical Variable Fiber Optic Attenuator MVOA Attenuator





Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined

attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its

 Impedance. Attenuators are widely used in the cable television system in order to meet the

requirements of multi port for electric level such as the amplifier input, output level control,

branch attenuation control.



Product features:

  1. Ultra high resolution
  2. Environment protection, perfect stability and reliability
  3. Can be used in different wavelength (1260-1620nm)



Application:

  • Telecommunication Network
  • CATV Network
  • Data communication
  • Instrumentation
  • Local Area Network
  • Fiber Optic Access Network



Technical Performance



Item

value

Operating Wavelength (nm)

1310±30&1550±30

Insertion Loss (dB)

<0.9 (With connectors)

Max. Attenuation Range (dB)

0.9-50

Insertion Loss Temperature Sensitivity (dB/°C )

<0.005

PDL (dB)

<0.15  (<15dBattenuation)

<0.25  (16~50dBattenuation)

Return Loss (dB)

>45 (UPC)

Maximum Power Handling (mW)

300

Operating Temperature (°C)

-5~+70

Storage Temperature (°C)

-40 ~+85

Connector type

LC / UPC

Pigtail

SMF-28e(Φ2.0mmcable)

Cable Length (m)

1.0~1.1

Dimension (mm)

26.0 x 16.0 x 16.0





Note: under normal conditions, not including connectors, welding device and end face loss





 Order information



Item

Wavelength

working/nm

Fiber type

Pigtail length

/meter

Connector

Mechanical Variable

 Attenuator (MVOA)

F=1260~1620
C=customized

SM=single mode
MM=multimode

1=1.0m
2=2.0m
3=3.0m
C=customized

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC





FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm

connectors:  SC FC LC ST ,etc

Package: blister box individual package

Polish method: UPC APC PC

Cable type: singlemode, multimode

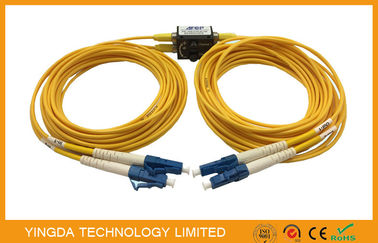

Variable Fiber Optic Attenuator 0
