Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

Çin Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB Tedarikçi
Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB Tedarikçi Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB Tedarikçi Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB Tedarikçi Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB Tedarikçi

Büyük resim :  Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

Ürün ayrıntıları:

Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO
Model Number: ATTN-MVOA-FCA-02

Ödeme & teslimat koşulları:

Minimum Order Quantity: 5 PCS
Fiyat: Negotiable
Packaging Details: 1 pc / plastoc blister box or customized
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detaylı ürün tanımı
Attenuation: 0- -40 dB Variable test wavelength: 1200-1650mm
type: mechanical adjustable attenuator Working temperature:: -40~+85 (℃)
Fiber optic type: single-mode,multimode connector type: SC ST FC LC MU all ok
polish: UPC APC PC connector plug time: 1000 times
package: 1pc in a blister box connector color: green,blue,beige
cable diameter: 0.9mm, 2.0mm

SC FC LC MU Inline Attenuator, Fixed In-line Fiber Optic Attenuator SM 1Meter Range:1~40dB





Description



Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined

attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its

 Impedance. Attenuators are widely used in the cable television system in order to meet the

requirements of multi port for electric level such as the amplifier input, output level control,

branch attenuation control.



Product features:

  1. Ultra high resolution
  2. Environment protection, perfect stability and reliability
  3. Can be used in different wavelength (1260-1620nm)



Application:

  • Telecommunication Network
  • CATV Network
  • Data communication
  • Instrumentation
  • Local Area Network
  • Fiber Optic Access Network



 Specification



Item

Value

Operating wavelength (nm)

1260~1620 or customized

Insertion loss (dB)

< 1.0

Attenuation value (dB)

>65

PDL (dB)

<0.15  (<15dB (attenuation range)

<0.25  (16~65dB (attenuation range)

Return loss (dB)

>45 (UPC)
>50(APC)

Working power (mw)

300

Operating Temperature(℃)

-5~70

Storage Temperature(℃)

-40~85

Fiber type

 9/125μm

Package size (mm)

15.0x15.5x5.0



Note: under normal conditions, not including connectors, welding device and end face loss



 Order information



Item

Wavelength

working/nm

Fiber type

Pigtail length

/meter

Connector

Mechanical Variable

 Attenuator (MVOA)

F=1260~1620
C=customized

SM=single mode
MM=multimode

1=1.0m
2=2.0m
3=3.0m
C=customized

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC

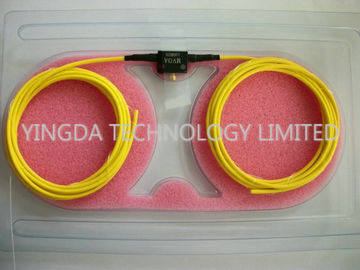

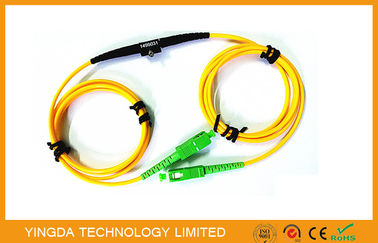

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB



FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm

connectors:  SC FC LC ST ,etc

Package: blister box individual package

Polish method: UPC APC PC

Cable type: singlemode, multimode



Cable type: below is 0.9mm blue color

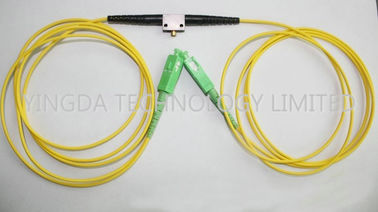

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

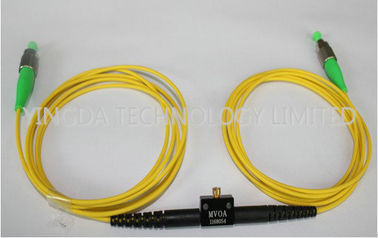

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB
