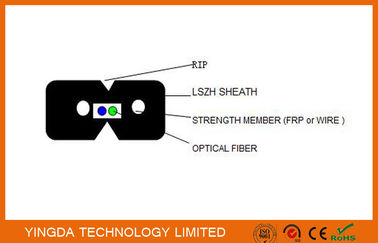

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH
Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Büyük resim :  Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH

Ürün ayrıntıları:

Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO,SGS
Model Number: ADB-ST-RD

Ödeme & teslimat koşulları:

Minimum Order Quantity: 100 PCS
Fiyat: Negotiable
Packaging Details: 1 pc / bag or 10 pc/ blister box
Delivery Time: 3 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Detaylı ürün tanımı
material: Metal, Plastic house color: black
shape: round type: bare fiber adaptor
weight: 12g Fiber type: single-mode
polish methold: UPC insertion loss: <0.2dB
Vurgulamak:

ftth fiber optic cable

,

ftth drop cable

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH







Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 0

Description:



This specifications covers the optical fiber cable for laying in indoor installation.

The optical fiber meets the requirements of ETISALAT specifications No: FCS-10





Single mode optical fiber characteristic:(bare fiber)



Item

Value

Mode field diamter @1310nm

8.6±0.4μm

Cladding diameter

125±1μm

Core concentricity error

≤0.6μm

Claddding non-circularity

≤1.0%

Primary coating diameter

250±15μm

Coating-cladding concentricity error

≤12.5μm

Fiber curl radius

≥4m



Transmission characteristics: (bare fiber)



Item

Performance

Attenuation

1310nm
1550nm

≤0.40db/km
≤0.30db/km

Marco bending loss

30mm
10 tums at 1550nm

≤0.50db

Cut-off wavelength



≤1260nm

Chromatic dispersion

1310nm
1550nm

≤3.5ps/nm.km
≤18ps/nm.km

Zero dispersion wavelength



1300-1324nm

Zero dispersion slope



≤0.092ps/nm2.km



Approved by ETISALAT small bend standards



 Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 1



Packing & delivery

  1. Delivery in standard lengths of 1000 meters
  2. Customized lengths available
  3. Protect against harsh environmental conditions



Details

Item

Value

Fiber (core)

2,1

Cable diameter (mm)

3.1*2.0

Cable weight (kg/km)

Fiber color

1 red; 2 green





Order information:



Fiber count:

1core, 2core, 4core ...

Fiber type:

G.657A1,G.657A2

Cable diameter:

2.0x3.1mm

Strength member:

ARP/FRP, Steel

Cable weight

8kg/km

Jacket color:

White,Black

Application:

Indoor, outdoor

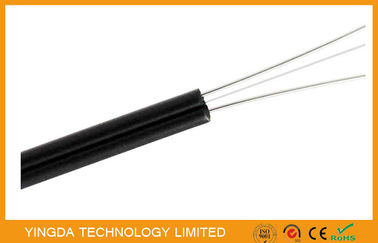

Indoor Figure -8 FTTH drop cable real photo:



White and Black color

Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 2Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 3



Self-supporting FTTH drop cable  real photo:



Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 4Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH 5
