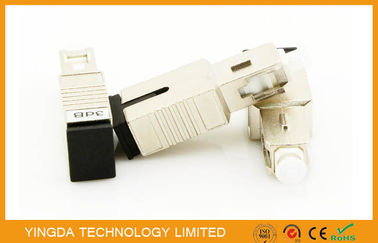

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO
Model Number: ATTN-SCF-01-B03
Minimum Order Quantity: 100PCS
Fiyat: Negotiable
Packaging Details: 1 pc / plastoc bag
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detay Bilgi
Attenuation: 2dB test wavelength: 1310nm, 1550nm
body material: Plastic Additional loss: 0.1dB
Working temperature:: -40~+85 (℃) Fiber optic type: single-mode
industry standard: Telcordia TA-NWT-001209 connector type: SC/PC
color: dust cap: white, connector body: blue connector shape: male female type

Ürün Açıklaması

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH



Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.


Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.




  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP network


Technical Parameter


Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB



Operating Wavelength(nm)



1310 and 1550±10nm

Operating Temperature(℃)




Order information




Adapter type


FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

SC/PC fixed attenuator 1/2/3/4/5/10/15dB

SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

Female to male

type (F-M)

FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB

FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB

LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

Variable(VOA) type

FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator

(MVOA attenuator)



Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home NetworkFixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network


Other types female to male attenuator


Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network
