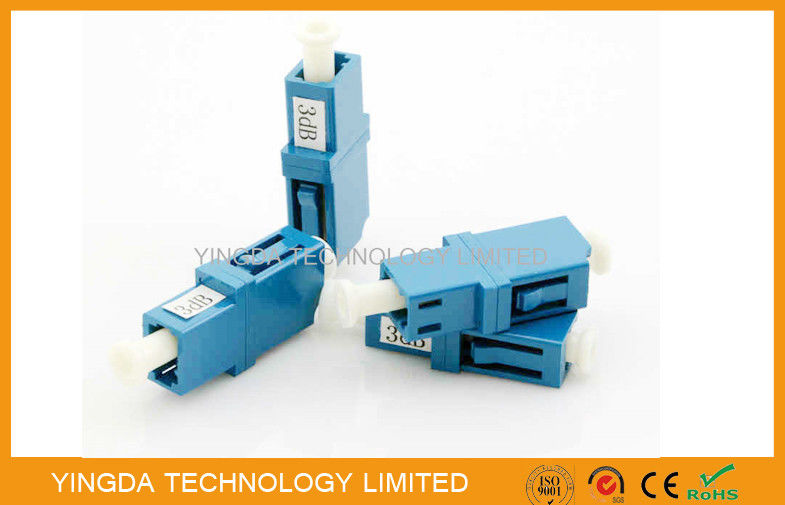

Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO
Model Number: ATTN-LCS-01-B03
Minimum Order Quantity: 100PCS
Fiyat: Negotiable
Packaging Details: 50 pc / plastic blister box or customized
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detay Bilgi
Attenuation: 3dB wavelength range: 1260-16500nm
test wavelength: 1310nm, 1550nm material: metal
Additional loss: 0.1dB Working temperature:: -40~+85 (℃)
Fiber optic type: single mode standard: GR910, IEC
connector: LC/UPC connector color: blue

Ürün Açıklaması

LC Fixed Attenuator PC 3dB Singlemode, Fiber Optic Attenuator LC 3dB IEC Standard





Optical attenuator is a kind of precise instrument which provide different attenuation values according

to the need of the project. Attenuation method of the product are: attenuate through the gap between

the optical fiber, attenuate according to The contact part of the leaky, and attenuate according to

attenuation fiber.



Features

  1. Conforms to GR910, accord with IEC standard
  2. Various attenuation way, all kinds of connectors available
  3. Low insertion loss and additional loss
  4. High attenuation accuracy
  5. High return loss, compact size, light weight
  6. High stability, high reliability



Application

  • Optical fiber communication system
  • Fiber optic data communication network
  • Optical fiber CATV network
  •  Other optical testing technology



Specification

Item

Attenuation/dB

Precision

 error (dB)

Working

wavelength

Return

loss(dB)

Connector type

Coupler type

1—2

≤±0.25dB

1310nm/1550nm

≥35dB

FC;SC/PC

3—15

≤±10%dB

1310nm/1550nm

≥35dB

FC;SC/APC

15-30

≤±1.5dB

1310nm/1550nm

≥35dB





Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light WeightMetal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight
