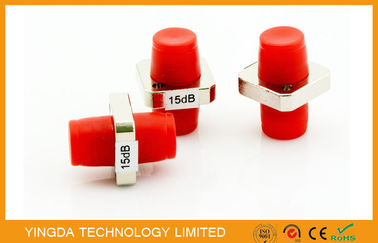

FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator

Name: FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-FCS-01-R15
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-FCS-01-R15
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

15dB

wavelength range:

1260-16500nm

test wavelength:

1310nm, 1550nm

material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single mode

standard:

GR910, IEC

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

50 pc / plastic blister box

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

inline optical attenuator

Ürün Tanımı

FC Metal Adapter Type Attenuator 15dB, Fiber Optic Attenuator FC/PC 15dB

Fixed adapter type attenuator can use a variety of connectors: FC, SC, ST optional.

Easy installation, simple structure.

Type	attenuation(dB)	Precision error(dB)	Wavelength	Return loss	connector
Adapter/ Coupler type	1—2	≤±0.25dB	1310nm/1550nm	≥35dB	FC;SC/PC
	3—15	≤±10 ％dB	1310nm/1550nm	≥35dB	FC;SC/APC
	15-30	≤±1.5dB	1310nm/1550nm	≥35dB

Features

Conforms to GR910, accord with IEC standard
Various attenuation way, all kinds of connectors available
Low insertion loss and additional loss
High attenuation accuracy
High return loss, compact size, light weight
High stability, high reliability

Application

Optical fiber communication system
Fiber optic data communication network
Optical fiber CATV network
Other optical testing technology

Specification

Item	Unit	Condition	value
Attenuation	dB	UPC APC	1-30 1-30
Return loss	dB	UPC APC	≥50 ≥60
wavelength	nm	-	1310&1550, 1240-1600
Attenuation accuracy	-	1-4dB 5-30dB	≤0.5dB ≤10%
Working temperature	℃	-	-40~+75
Storage temperature	℃	-	-40~+85
Polarization dependent loss (PDL)	dB	-	≤0.2
Relative humidity	%	75℃	95
Anti vibration	dB	10-55Hz, 2hrs	≤0.2
Impact resistance	dB	1.5m, 5times drop	≤0.2

FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator 0
