288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes

  • 288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes
  • 288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes
  • 288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes
  • 288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes
Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası YD-MPO-3U-288
Min sipariş miktarı 50pcs
Ambalaj bilgileri 1pc/box
Teslim süresi 8-10days
Ödeme koşulları T/T, Western Union, MoneyGram
Yetenek temini 2000pcs/month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Material steel with german technology color black
size 444*341.49*88.9mm pack 1pc/box
max capacity 288cores cassette quantity 4pcs
cassette module capacity 24fibers adapter MPO male/female, LC duplex adapter
cable ports >23ports at back insertion loss MPO<0.7dB, LC<0.2dB
Vurgulamak

MPO patch cord

,

mpo patch cable
Mesaj bırakın
Ürün Açıklaması

288 Fibers 19-Inch Slide-Out Patch Panel, 3U MPO Enclosures Chassis 12 Cassettes, 12 LC Duplex Out,3 MPO In,SENKO Black

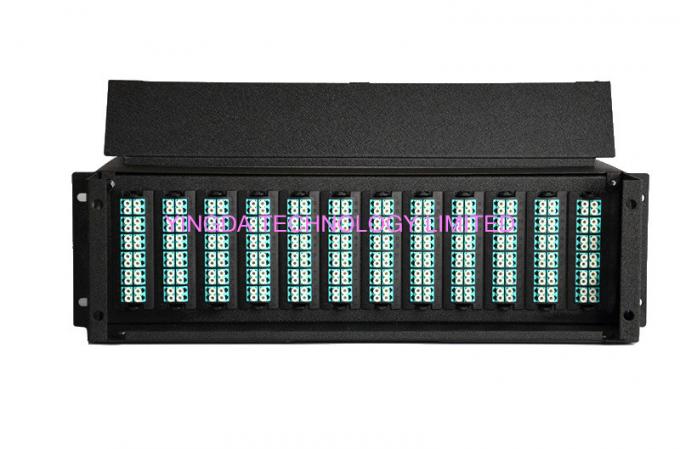

288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes 0

MPO Fiber Optic Patch Panel is used for trunk cable connection and distribution cable management in distribution area of MDA, IDA or HDA data centers. It could be installed in 19 inch racks and cabinets. It could accommodate MPO cassette modules or MPO adapter panels.

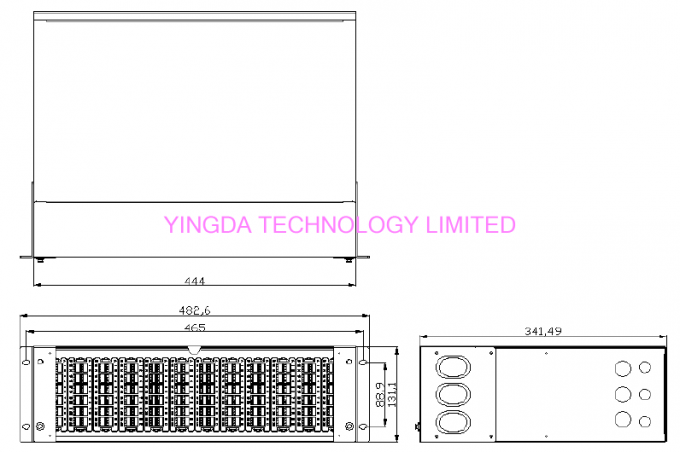

Illustration

288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes 1



Features

  • Could install in 19 inch racks and cabinets, manage MPO cassette modules
  • Modular design realizes high port number and improves high density connection capabilities.
  • 3U MPO Fiber Optic Patch Panel can accommodate 12pcs of MPO cassette modules. MPO cassette modules can install duplex LC adapters with the capacity up to 288 fibers maximum, simplex SC adapters up to 144 fibers maximum and MPO adapters up to 864 fibers maximum.
  • Made of premium cold rolled steel.
  • The steel is processed by degreasing, pickling, Rustproof phosphating, cleaning with water, and electrostatic spraying. The thickness of spraying is 80um~100um. European RoHS compliant.
  • MPO Patch Panel includes cable management and labels.
  • Convenient installation and easy management.
  • The density is more than 4 times of traditional splicing patch panels. It saves much room of cabinets, improves use ratio of cabinets, and creates value of data center construction.
  • Modular design is easy for upgrade and maintenance.





Application



Machine rooms of data center and intranet





More pictures

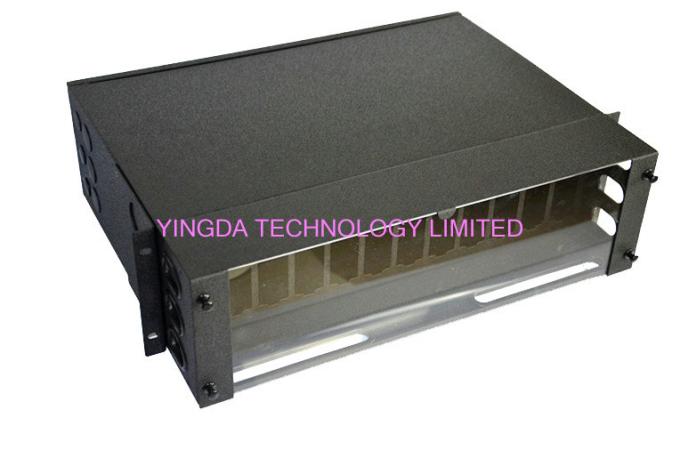

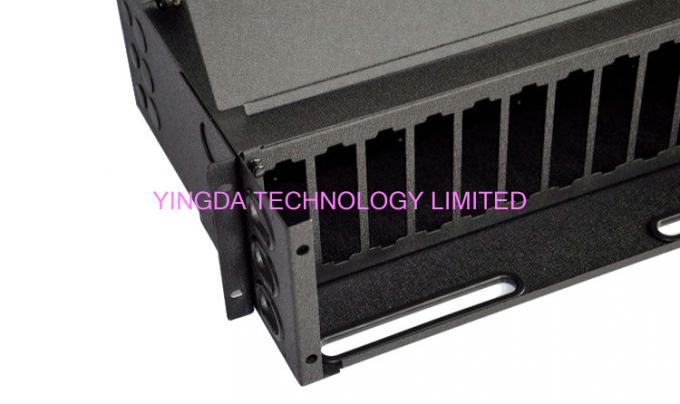

  • MPO Patch panel is sliding type, can draw out.
  • each box can hold 12pcs cassette modules
  • each modules with 12pcs dulex LC adapters and MPO harness cable inside. that is MPO-12LCDX fanout cable.



288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes 2288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes 3

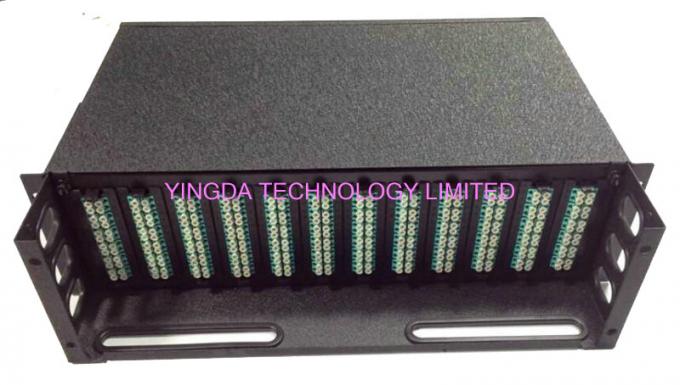

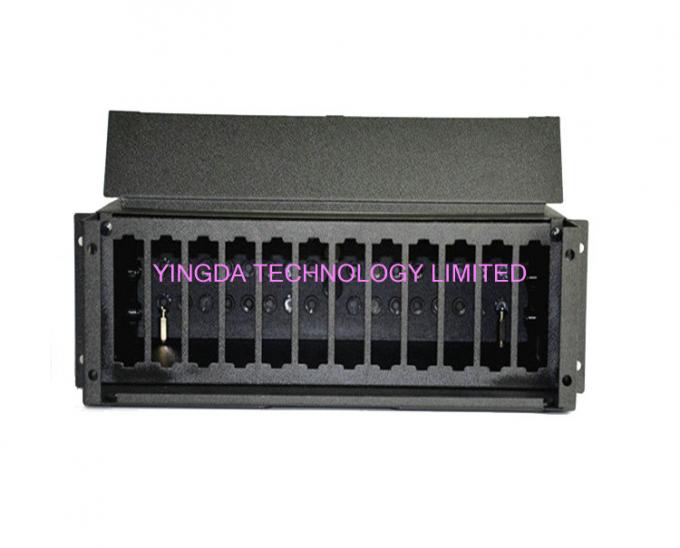

  • it is made of steel, but with high quality german technology, and hot sell during German and United States.
  • each box with
  • waterproof and dustproof cover, good protection to fiber and cable, adapter inside.each module can be take off by hand. and there is holes especially for truck cable distribution.



288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes 4288 Fibers 19 Inch Slide Out Patch Panel , 3U MPO Enclosures Chassis 12 Cassettes 5

Order information



Model Product name color Inner box Shipping box
YD-MPO-3U-288 MPO 3U optical fiber patch panel Black 1PCS 1PCS
