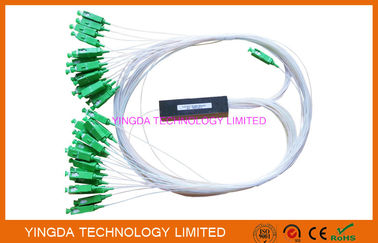

FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard

Place of Origin SHENZHEN,CHINA
Marka adı YINGDA
Sertifika ISO
Model Number 1x32 optical splitter
Minimum Order Quantity 100 pcs
Fiyat negotiable
Packaging Details 1pc/ box, 20pcs/carton box
Delivery Time 5-8days after payment
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 10,000 pcs per month
Ürün ayrıntıları
split ratio 1*32 connector SC/APC
fiber type singlemode G657A1 insertion loss 16.5dB
Uniformity (Max.) <1.3dB wavelength 1260 - 1650 nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 and GR-1209
steel tube 80×20×6mm
Vurgulamak

Fiber optik bölücü

,

fbt coupler

Mesaj bırakın
Ürün Açıklaması

FTTH Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard





YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



PLC SPLITTER 1X32 STRUCTURE

FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 0





Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability



Applications

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution



Compliance

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS



Specifications



Parameters 1×32
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 16.5/16.9
Loss Uniformity (dB) 1.5
Polarization Dependent Loss(dB) 0.3
Return Loss (dB)(P/S Grade) 55/50
Directivity (dB) 55
Wavelength Dependent Loss (dB) 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 50×7×4
Module Dimension (mm) 140×115×18
Mini-Module Dimension (mm) 80×20×6



Notes:

1. Specified without connectors.

2. IL will be 0.15dB higher with connectors.





Product details

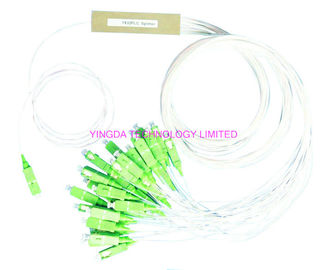

steel tube can include: product name, seral number or logo, and the input and output color, length,connector types can be customized.



FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 1FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 2



each splitter will test after add connectors before delivery.



FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 3FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 4





Yingda Produce All Kinds Of Fbt Couplers And Plc Splitters From 1xn To 2xn Series..

For more details, pls send mail to us at: sales@ydpcable.com   contact: sophie wang
