FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors

Çin FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors Tedarikçi
FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors Tedarikçi FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors Tedarikçi FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors Tedarikçi FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors Tedarikçi FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors Tedarikçi

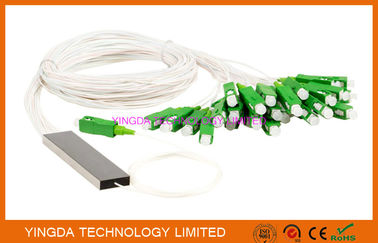

Büyük resim :  FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors

Ürün ayrıntıları:

Place of Origin: SHENZHEN,CHINA
Marka adı: YINGDA
Sertifika: ISO
Model Number: 1x32 plc splitter

Ödeme & teslimat koşulları:

Minimum Order Quantity: 100 pcs
Fiyat: negotiable
Packaging Details: 1pc/ box, 20pcs/carton box
Delivery Time: 5-8days after payment
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10,000 pcs per month
Contact Now
Detaylı ürün tanımı
split ratio: 1:32 connector: LC APC
fiber type: single mode G657A1 insertion loss: 16.5dB
Uniformity (Max.): <1.3dB wavelength: 1260 - 1650 nm
PDL(Max.): 0.3dB Standard: Telcordia GR-1221 and GR-1209
steel tube: 80×20×6mm

FTTH 1x32 Mini PLC Splitter Singlemode Steel Tube LC APC Connectors PON CATV Network LSZH Corning Fiber





YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • High Reliability and Stability



Applications

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution



Compliance

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE
  • RoHS



Steel Tube Size



FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors



Technical Specification



      Without connectors

Type 1*2 1*4 1*8 1*16 1*32 1*64 2*2 2*4 2*8 2*16 2*32 2*64
Item
Insertion loss (dB) Max 3.7 7 10.2 13.5 16.5 20.5 4.2 7.2 10.7 14.2 16.8 20.5
Uniformity(dB) Max 0.5 0.6 0.8 1 1.3 1.8 0.6 0.8 1 1.5 1.8 2
PDL(dB) Max 0.2 0.3 0.4 0.2 0.3 0.4
Operating Wavelength (nm) / 1260~1650
Return loss(dB) Min 55
Directivity (dB) Min 55
Operating Temperature (°C) / -40°C~85 °C
Storage Temperature (°C) / -40°C~85 °C



      With connectors

Type 1*2 1*4 1*8 1*16 1*32 1*64 2*2 2*4 2*8 2*16 2*32 2*64
Item
Insertion loss (dB) MAX 3.9 7.2 10.5 13.8 16.8 20.8 4.4 7.4 11 14.5 17.5 20.8
Uniformity (dB) MAX 0.5 0.6 0.8 1 1.3 1.8 0.6 0.8 1 1.5 1.8 2
PDL (dB) MAX 0.2 0.3 0.4 0.2 0.3 0.4
Operating Wavelength (nm) / 1260~1650
Return loss (dB) MIN 50(UPC),55(APC)
Directivity (dB) MIN 55
Operating Temperature (°C) / -40°C~85 °C
Storage Temperature (°C) / -40°C~85 °C



Notes:

1. Specified without connectors.

2. IL will be 0.15dB higher with connectors.

3. For more information about 2xN PLC splitter, please refer to our PDF datasheet.







Product details

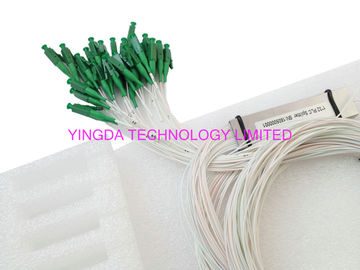

steel tube: product name, seral number or logo               each product with 1test report, 2pc/box



FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC ConnectorsFTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors

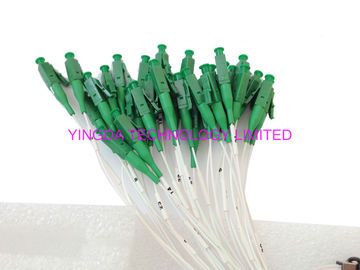

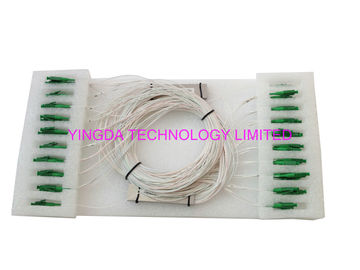

plc splitter with figure ring on each output for easier recognaize. and fix on the box tightly with ties for better protection during transportation.



FTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC ConnectorsFTTH 1x32 Mini PLC Splitter Single mode Steel Tube LC APC Connectors



For more details, pls send mail to us at: sales@ydpcable.com   contact: sophie wang
