Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network

Temel bilgi
Place of Origin: CHINA
Marka adı: YINGDA
Sertifika: ISO SGS CE ROHS
Model Number: ODC male
Minimum Order Quantity: 10pcs
Fiyat: NEGOTIABLE
Packaging Details: 1pc/pack
Şimdi başvurun
Detay Bilgi
application: fiber to the antenna,defense,Industry, Aerospace cable: outoor waterproof
cable jacket: black LSZH connector: LC SC FC ST ok
fiber count: 2 cores length: on customer request
logo: OEM label: OEM

Ürün Açıklaması



Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network



Description:



The ODC Connector together with the far transmission cable, are becoming the standard interface

specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.



The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection

class IP67. They are well suited for Industrial and Aerospace and Defense applications.





Application

  • Indoor and Outdoor applications
  • Outdoor & Military communication equipment connection.
  • Oil field, mine communication connection.
  • Far transmission wireless base station.
  • Video Surveillance system
  • Optical fiber sensor.
  • Railway signal control.
  • Intelligent substation



Feature:

  1. Screwed locking mechanism, confirm the connection is long-term and reliable.
  2. Guide structure, can be installed blindly, simply and quickly.
  3. Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
  4. Compact appearance, robust and flexible.
  5. Sealing design through wall.
  6. Reduce the times of splicing.



ODC Cable structure

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network



Specification

Insertion loss

≤0.8dB

Repeat ability

≤0.5dB

Fiber core

2

Mating times

≥500N

Working temperature

-40~+85°C

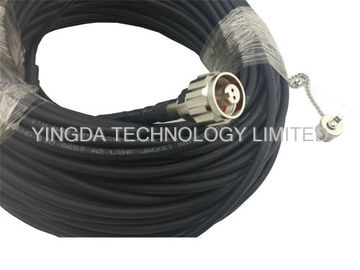

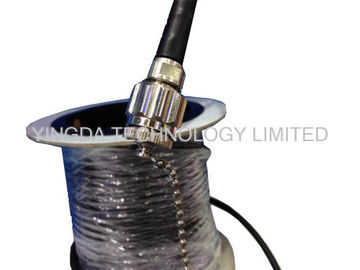

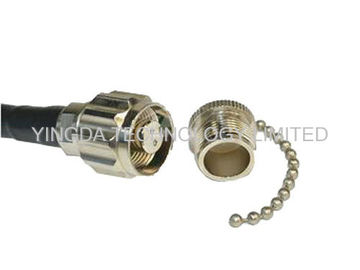

More photos

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA NetworkOutside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA NetworkOutside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network

Outside Fiber Optic Patch Cables SC Duplex With ODC Male Connectors In FTTA Network
