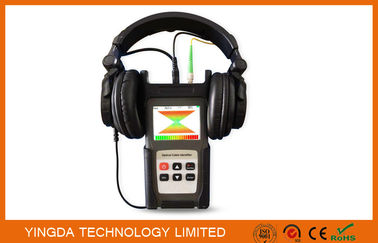

Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO
Model numarası JW6208
Min sipariş miktarı 1 pc
Fiyat Negotiable
Ambalaj bilgileri 1pc / b ox

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
wavelength 1550 nm Interface type SC/APC (PC, ST interchangeable)
Output power -2dB, -1dB, -0.5dB, 0dB adjustable Detection methods single fiber testing, no loopback
Display 3.5'industrial screen Dimension 100*180*70mm
Vurgulamak

fiber optik araç kitleri

,

Fiber sonlandırma kitleri

Mesaj bırakın
Ürün Açıklaması



Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits





Features

  • Rapid and accurate identification
  • In optical cable project, we need to search the target cable accurately, the operator only need
  • to click the optical cable slightly, When operator click the targeted or wanted cable, JW6208
  • can response with sound and light reaction, so as to identify quickly and accurately.
  • Non destructive optical cable
  • Replace previous method of cutting, bending, and other frozen,
  • Beat mode recognition of target cable, completely does not damage the cable,
  • The maximum cost savings, improve efficiency.
  • The real one key type test, handheld design of portable and easy to carry, 3.5' color screen
  • real-time waveform.
  • The software of the intelligent struck the judgment of the two operation / display mode, combined
  • with the Headset real-time audio, with 3 kinds of recognition percussion method, so as to quickly and
  • accurately identify
  •  the measured cable



 1. according to the Headset feedback information, the operator can intuitive judgment

percussion cable,

 2. according to the waveform real-time cable, knock in the measured cable real-time

waveform will have obvious wave, visual disturbance

 3. the instrument built-in intelligent mode, knock in the measured cable screen showed

positive and negative Pyramid strength, and also outputs the notification sound



Specifications:



Wavelength:

1550nm

Detection methods

single fiber testing, no loopback

Output power

-2dB, -1dB, -0.5dB, 0dB adjustable

The maximum distance

 60/80Km

Interface type

SC/APC (PC, ST interchangeable)

Signal to noise ratio

40dB

Display

3.5'industrial screen

Short Troubleshooting

650 red light

Test results

1, 2, 3 real time audio waveform display, intelligent mode

Supply mode

1, 7.4V 3500mAh battery (replaceable) standby time >24H

(optional 10 minutes automatic shutdown)

continuous working time >20H

2, the 12V 2A DC power adapter

Dimension

100*180*70mm

The light weight:

490g (including battery) lightweight handheld portable easy belt design



Standard package



JW6208 body

1pc

Earpiece

1pc

User manual

1pc

Charger

1pc

Bag

1pc
