FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: iso
Model Number: FC bare fibre adapter
Minimum Order Quantity: 10PCS
Packaging Details: 1PCS / BOX
Şimdi başvurun
Detay Bilgi
MATERIAL: metal dust cap color: green
type: fiber adaptor shape: bare fiber 250um adapter
fiber mode: single mode insertion loss: <1dB
Repeatability: < 0.2db warranty: 2 years
temperature: -40 to +85 degree

Ürün Açıklaması

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter





Bare fiber adapters provide a simple and effective way to use un-terminated fibers

with commercial receptacles.



Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily

removed with piano wire, allowing hundreds of insertions. They are recommended for power meter

hook-ups, temporary system repairs or wherever a quick fiber connections is required.





1. Application:

  • Bare fiber connection.
  • Optical fiber through connection test.
  • Two-way communication during optical-fiber cable installation and maintenance.

2. Feature:

  • Simple to use
  • Suitable for fibers with coating diameters of 250um & 900um.
  • Optical fiber with hole dia. between 123-127um can be used.
  • Multimode or Singlemode connectors.



3. Specification:



Item

LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc

Type

Multi-Mode

Single-Mode

Light Characteristic

OperatingWavelength

850nm&1300nm

1310nm & 1550nm

Typical Insertion Loss

0.2dB & 0.2dB

0.2dB & 0.2dB

Mechanical Testing

Repeatability

≤0.2dB

Exchange

≤0.2dB

Durability

>1000 (Times)

Temperature

Storage Temperature

25 ~+85

OperatingTemperature

25 ~+85

Length,Color,Out-Diameter,Fiber counts

According to the customers' requirement

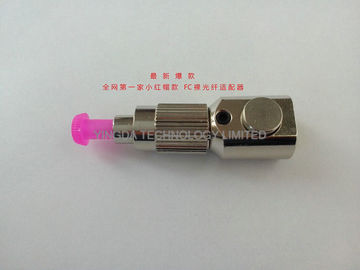

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter

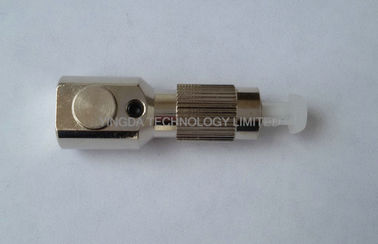

FC PC UPC Fiber Optic Cable Adapter 250um , SC LC ST SMA Bare Fibre Adapter
