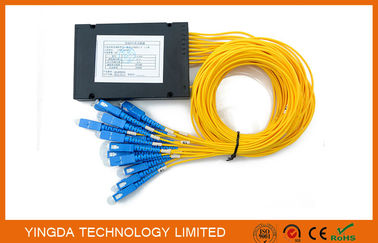

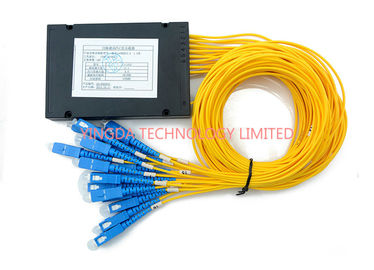

Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability

Temel bilgi
Place of Origin: SHENZHEN,CHINA
Marka adı: YINGDA
Sertifika: ISO SGS ROHS
Model Number: YD-PLC-MM116-SC-15-20
Minimum Order Quantity: 50 pcs
Fiyat: negotiable
Packaging Details: 1PC/BOX
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
Şimdi başvurun
Detay Bilgi
connector: SC / UPC fiber type2: Corning fiber SMF-28e
insertion loss: 13.5 dB Uniformity (Max.): 1.2 dB
wavelength: 1260-1650nm PDL(Max.): 0.25 dB
plastic box module: 120*80*18 mm Fiber length: 1.5 meter
cable diameter: 2.0mm Split ratio: 1x16 PLC splitter

Ürün Açıklaması

FTTH Passive Fiber Optic PLC Splitter Moule 1X16 SC SM 2.0mm Plastic Box Splitter​





 Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.

These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.



Applications


* FTTH,FTTC,FTTB
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems



Features


* High uniformity
* Low insertion loss
* Compact & small size
* High reliability and stability
* Optional input & output



PLC Specification
Wavelength(nm) 1260-1650
Parameters 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32

Insertion Loss

(with connector)(dB)

≤7.4 ≤10.7 ≤13.7 ≤16.9 ≤21 ≤7.8 ≤11.5 ≤14.5 ≤17.7

Insertion Loss

(W/O connector)(dB)

≤7.7 ≤11.2 ≤14.2 ≤17.5 ≤21.5 ≤8.3 ≤12 ≤15 ≤18.2
Uniformity (dB) ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.7 ≤1.7 ≤1.7 ≤2.2 ≤2.7
PDL(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.2 ≤0.4 ≤0.4 ≤0.4
Size(Blocklesstype) (H×W×L)(mm) 4×7×60 4×12×60 6×20×80 6×40×100 4×7×60 4×12×60 6×20×80
Return Loss(dB) >50
Directivity(dB) >55
TemperatureRange(°C) -40~+75
Storage Temperature(°C) -40~+85



2×N (N>2) (Without connector)



parameters

2×4

2×8

2×16

2×32

1

Operation

wavelength(nm)

1260~1650

2

Insertion loss(dB)

Max

7.8

11.2

14.2

17.4

3

Loss uniformity(dB)

Max

1.2

1.5

1.8

2.0

4

Return loss(dB)

Min

55

55

55

55

5

PLD(dB)

Max

0.2

0.3

0.4

0.4

6

Directivity(dB)

Min

55

55

55

55

7

Wavelength dependent loss(dB)

0.4

0.4

0.5

0.5

8

Pigtail length(m)

1.2(±0.1) or customer specified

9

Fiber type

Cusomization

10

Operation temperature(°C)

-40~85

11

Storage temperature(°C)

-40~85

12

Dimension (L×W×H) (mm)

50×4×4

50×4×4

60×7×4

60×7×4



Note: All measurement were done at room temperature and specification include connectors.
