3 Out 3 Fiber Optik Ek Kapatma, Line In Line Yeraltı Dış Cephe Muhafaza

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO,SGS
Model Number: H010
Minimum Order Quantity: 100 PCS
Fiyat: Negotiable
Packaging Details: 1pc / bag, 10pcs / carton box
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detay Bilgi
Kapasite: Bunchy: 96 (Çekirdekler); Ribbon: 144 (Çekirdek) Malzeme: PC
Kablo bağlantı noktası: 3 inç 3out Renk: siyah
mühürleme: Kauçuk conta Splice tepsi: 4PCS
Boyut: 430x180x125 (mm) Kablo çapı: Φ8-Φ20 (mm)

Ürün Açıklaması

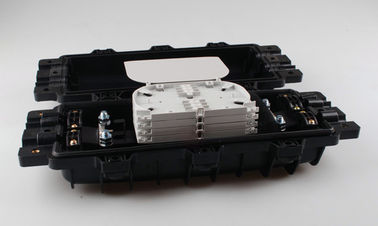

Inline Splice Enclosure Distribution Box, 3in 3out PC In-Line Underground

Splice Closure H010





Description



This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC),

as the guidance of proper installation.



The scope of application is: aerial, underground, wall-mounting, duct-mounting, hand hole-mounting.

The ambient temperature ranges from -40℃ to +65℃.



Features

  1. Easy to re-enter and repair
  2. 3pcs cable entry and 3pcs cable exit ports
  3. Pressure testing valve and earth deriving device
  4. Intergrated seal, air tight and water proof
  5. RoHS compliant
  6. Can be used in through, branch or mid span splice locations



Application: aerial, underground duct or direct burial applications



Specification



Outside dimension (LxWxH)

430x180x125 (mm)

Weight (excluding outside box)

2500g-2825g

Number of inlet/outlet ports

3 (pieces) on each side (total 6 pieces)

Diameter of fiber cable

Φ8—Φ20 (mm)

Capacity of FOSC

Bunchy: 12—96 (Cores)

Ribbon: max. 144(Cores)

Splice tray capacity

Bunchy:12,24(cores) Ribbon:3 (pieces)



Specification



Name of accessories

Usage

Heat shrinkable

protective sleeve

Protecting fiber splices

Nylon tie

Fixing fiber with protective coat

Insulation tape

Enlarging diameter of fiber  cable for easy fixing

Seal tape

Enlarging diameter of fiber  cable which fits in with seal fitting

Hanging hook

For aerial use

Earthing wire

Putting through between earthing devices

Abrasive cloth

Scratching fiber cable

Labeling paper

Labeling fiber

Special wrench

Fixing bolts, tightening nut of reinforced core

Measuring paper

To measure circle, of which its diameter is enlarged with seal tape

Buffer tube



Hitched to fibers and fixed with FOST, managing buffer

Desiccant

Put into FOSC before sealing for desiccating air.





Package information

  1. 8pcs/carton
  2. Carton size:74*40*45cm
  3. G.W.:24KG

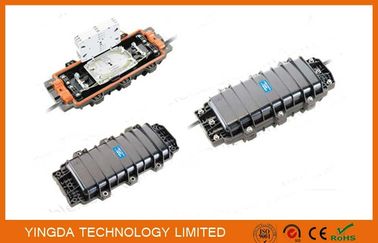

Other types of Fiber Optic Splice Closures:
