96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO,SGS
Model Number: H003
Minimum Order Quantity: 100 PCS
Fiyat: Negotiable
Packaging Details: 1pc / bag, 10pcs / carton box
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detay Bilgi
Capacity: 96cores material: PC
Cable port: 2pcs color: black
sealing: rubber seal splice tray: 4pcs
dimension: 280x200x90 (mm) cable diameter: Φ8—Φ14 (mm)

Ürün Açıklaması

Horizontal Fiber Optic Joint Closure, Pole Mount Closure 96 Cores,

Fiber Optic Junction Box H003





Features

  1. Compact size, large capacity to 96 Fibers
  2. Easy to re-enter and repair
  3. 2pc cable exit and entry ports
  4. Pressure testing valve and earth deriving device available on requests
  5. Intergrated seal, air tight and water proof
  6. RoHS compliant
  7. Can be used in through, branch or mid span splice locations
  8. Suitable for aerial, underground duct or direct burial applications



Specification



Outside dimension (LxWxH)

280x200x90 (mm)

Weight (excluding outside box)

1200g-1500g

Number of inlet/outlet ports

max. 4 pieces

Diameter of fiber cable

Φ8—Φ14 (mm)

Capacity of FOSC

Bunchy: 6—96 (Cores)

Material

PC

Working / Storage temperature

-40 to 65℃.

Splice tray capacity

Bunchy:6,12,24(cores)



Application: aerial and wall-mounting



Main Accessory List:



Name of accessories

Usage

Heat shrinkable protective sleeve

Protecting fiber splices

Nylon tie

Fixing fiber with protective coat

Seal tape

Enlarging diameter of fiber  cable which

fits in with seal fitting

Hanging hook

For aerial use

Fixing device



Earthing wire

Putting through between earthing devices

Abrasive cloth

Scratching fiber cable

Labeling paper

Labeling fiber

Special wrench

Fixing octagonal nut (plastic)

Buffer tube



Hitched to fibers and fixed with FOST, managing buffer

Desiccant

Put into FOSC before sealing for desiccant air.

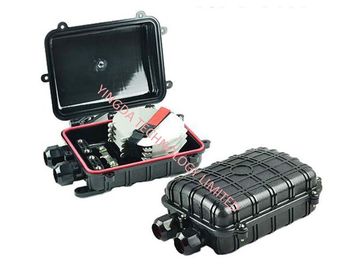

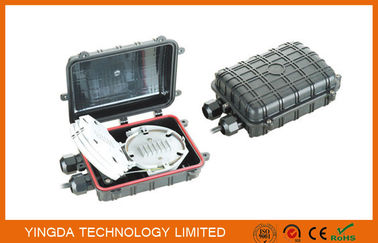

96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box96 Cores Horizontal Fiber Optic Joint Closure Pole Mount , Fiber Optic Junction Box
