CATV Fiber Optic SC / FC Adapter Hybrid Type Bellcore TA-NWT-001209 ISO SGS

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO,SGS
Model Number: AD-fc/sc-SX-M
Minimum Order Quantity: 100 PCS
Fiyat: Negotiable
Packaging Details: 1 pc / bag or 10 pc/ blister box
Delivery Time: 3 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detay Bilgi
material: Metal, plastic dust cap color: red
type: hybrid adapter weight: 12g
Fiber type: single-mode, multimode sleeve material: ceramic

Ürün Açıklaması

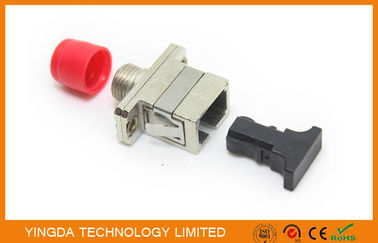

Fiber Optic Adapter SC / FC Hybrid Adaptor, FC / SCHybrid Fiber Adaptor





Description:



FC/SC Hybrid adapter can connect SC and FC both connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.





Features

  1. Low insertion loss <0.2dB
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C





Order information



Housing Material

Sleeve Material

Channel

zinc alloy

Ceramic

Simplex

 Plastic

 Phosphor bronze

duplex
