Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector

Temel bilgi
Place of Origin: China
Marka adı: YINGDA
Sertifika: ISO,SGS
Model Number: AD-FC/LC-SX-M
Minimum Order Quantity: 100 PCS
Fiyat: Negotiable
Packaging Details: 1 pc / bag or 10 pc/ blister box
Delivery Time: 3 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detay Bilgi
material: Metal dust cap color: red
type: hybrid adapter weight: 12g
Fiber type: single-mode sleeve material: ceramic

Ürün Açıklaması

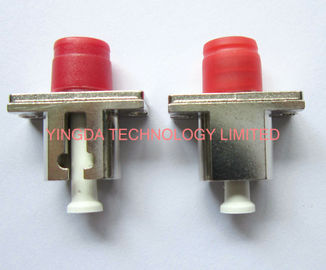

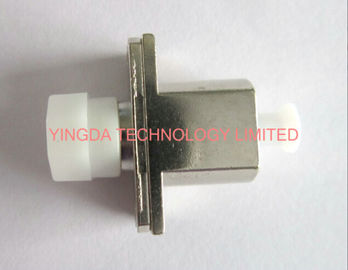

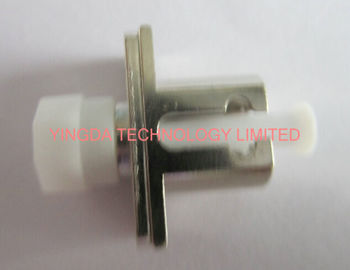

FC to LC Hybrid Adapter, FC / LC Hybrid Fiber Optic Adapter, FC - LC Coupler​





Description:

Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Features

  1. Low insertion loss value
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Item

Value

Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic
