fiber optik sonlandırma kutusu
Created with Pixso. SC / LC Fiber Optic Termination Box 4 Port

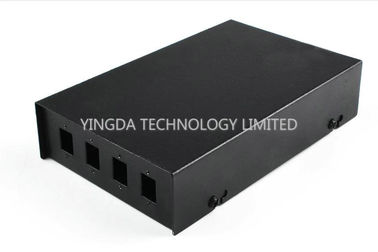

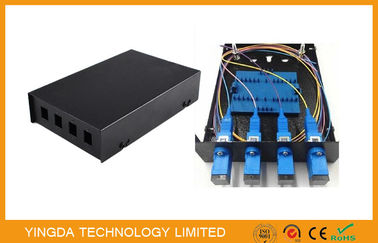

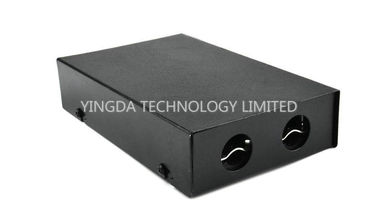

SC / LC Fiber Optic Termination Box 4 Port

Marka Adı: YINGDA
Model Numarası: WTB-S04
Adedi: 100 pcs
fiyat: 0.18USD-4.29USD
Teslim Zamanı: 5days after payment
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
ISO SGS ROHS
material:
metal
color:
black
max capacity:
4 fibers
adapter:
SC/LC
cable ports:
2 Pcs
application:
FTTH FTTX FTTB ODN PON network
dimension:
16*10*3.5cm
thickness:
0.6, 0.8, 1.0mm
Packaging Details:
1pc / box, 10pcs / carton box
Supply Ability:
500,000 pcs per month
Vurgulamak:

Fiber optik Terminal kutusu

,

Fiber optik dağıtım kutusu

Ürün Tanımı

SC / LC Fiber Optic Termination Box , 4 Port Wall Mount Terminal Box 4 Fibers​





Description



Fiber Optic Cable terminal box is use for connecting small capacity cable with the terminal.

It has the function of fixing fiber optic cable and welding.



Features

  1. Electrostatic spraying, beautiful appearance, easy to operate.
  2. Equip with cable fixed device, splice tray, thread ring.
  3. Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores.
  4. It can insulate the cable metal parts and the terminal box shell and with grounding device
  5. Have enough space for terminal placement and remaining fiber storage.
  6. Size is customize



Specification



Model

Capacity

/ core

Size

/ mm

Remark

WTB-S04

4

190*100*35

  1. White/Black;
  2. Box body for cold-rolled sheet,
  3. surface electrostatic spraying,
  4. 4/8 /12/24 adapter exports,
  5. suitable for FC, SC, ST

WTB-S08

8

260*130*40

WTB-S12

12

268*138*46

WTB-S24

24

265*140*60

WTB-S8P

265*140*45

Plastic SC adapter output 8ports





Technical parameters



Environment temperature

-25~+45°C

Relative humidity:

≤85%( 30°C)

Atmosphere pressure

70-106KPa

Insulated Resistance

≥2×10MΩ/500V (DC)

Intensity:

≤15KV(DC)/1min no spark-over and no flying arc

Bending radium

≥40mm



ApplicatIon

  • Telecommunications
  • Local Area Networks
  •  FTTH deployment
  • CATV

SC / LC Fiber Optic Termination Box 4 Port 0SC / LC Fiber Optic Termination Box 4 Port 1SC / LC Fiber Optic Termination Box 4 Port 2



Other types:



SC / LC Fiber Optic Termination Box 4 Port 3SC / LC Fiber Optic Termination Box 4 Port 4
