1 * 8 Açık Fiber Kablo Ortak Kutusu, Inline Duvara Montaj Fiber Optik Bölücü Kutusu
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xKablo girişi | 6 adet yuvarlak port 8-20mm | Kablo çapı | 2: 13 mm; 2: 16 mm; 2: 20 mm |
---|---|---|---|
Kablo çıkışı | 8 adet damla kablo 2 * 3mm çıkış | Renk | siyah |
Boyut | 295 * 202 * 81mm | Yükleme yöntemi | duvar montajı, direk montajı, baca, yeraltı, anten |
Splitter | mak. 1x8 splitter mini modülü 0.9mm tipi | Bağdaştırıcı | mak. 8 adet SC adaptör |
Max kapasite | 8 çekirdek | ||
Vurgulamak | Fiber optik kablo bağlantı kutusu,fiber optik kablo eklem kutusu |

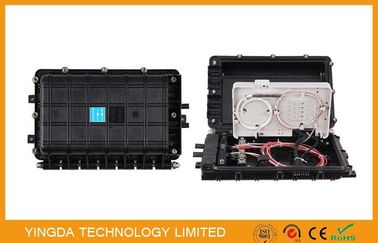

Inline Fiber Optic Splitter Box Closure, 1*8 Outdoor Splitter Closure
Description
Optical fiber splice closure (FOSC), also called fiber optic junction box or enclosures.
It is the cable terminated access point, then connect with optical switch through the
optical fiber jumper.
The fiber optic enclosure can resist the nature of heat and cold, light, oxygen and microbial
material aging, and has excellent mechanical strength. The solid closure housing and main
components are able to bear the worst environmental change, also it is flame retardant,
waterproof function, so as t protect the cable from the vibration, impact, stretch and twist.
Features
- Advanced internal structure design.
- Easy to re-enter, it never requires re-entry tool it.
- The closure is spacious enough for winding and storing fibers.
- Fiber Optic Splice Trays are design in SLIDE-IN-LOCK and its opening angle is about 90°.
- The curved diameter meets with international standard.
- Easy and fast to increase and reduce splice tray.
- Straight-through for un-cutted and branching for cutting the fiber.
- There are 2*3 drop cable elements to be chosen Max.16 pcs drop cable input/output.
- It can be installed Max. one 1:8 block-less PLC splitter.
- Lay adapters suit for FTTH and easy to operate.
Applications
- Suitable for bunchy fibers
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- FTTH optical fiber distribution
Specification
Model |
FOSC-SH01 (single fiber) |
Max capacity |
8F |
Splice tray capacity |
8F |
Splitter tray (Box type PLC) |
1:8 PLC splitter |
Adapter qty |
8 SC |
Cable Diameter |
2round port:13mm 2round port:16mm 2round ports:20mm |
Product Structure:
More product show:
