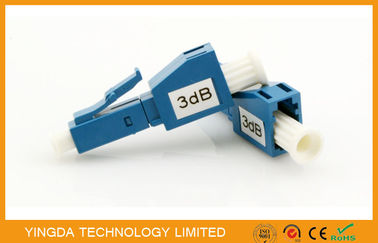

Male to Female Fiber Optic 3dB 10dB 15dB 20dB Attenuator LC / UPC , F-M Attenuator

Name: Male to Female Fiber Optic 3dB 10dB 15dB 20dB Attenuator LC / UPC , F-M Attenuator
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-LCS-01-B03
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-LCS-01-B03
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

1dB - 20dB fix

test wavelength:

1310nm, 1550nm

body material:

Plastic

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode, multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC/APC

color:

dust cap: white, connector body: blue

connector shape:

female to male attenuator

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

optical fiber attenuator

Ürün Tanımı

LC/PC Optical Attenuator Male to Female Fiber Optic Attenuator LC/UPC 3dB

Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .

Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.

Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.

Features

Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Increases panel density and quick plug in installation
New SC footprint for duplex and 4 way design, more compact for most patch
Compliant with Bellcore GR-910-CORE
All parts compliant with ROHS

Application

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP

Technical Parameter

Return Loss	≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)
Attenuation Tolerance(dB)	1-5dB＜±0.5 dB
	5-10dB＜±10%
	11-25dB＜±5%
Operating Wavelength(nm)	1310±10nm
	1550±10nm
	1310 and 1550±10nm
Operating Temperature(℃)	-40℃～+75℃

Male to Female Fiber Optic 3dB 10dB 15dB 20dB Attenuator LC / UPC , F-M Attenuator 0
