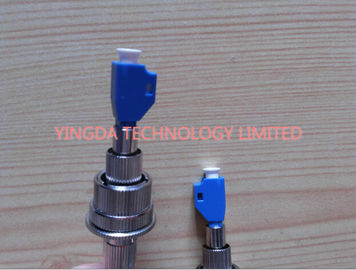

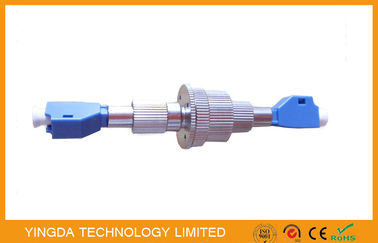

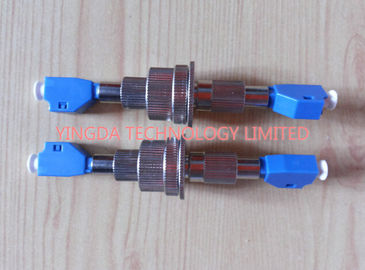

LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier

Name: LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-LCS-MVOA-01
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-LCS-MVOA-01
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

0-30dB Adjustable

test wavelength:

1310nm, 1550nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode

connector type:

LC/PC

dust cap:

plastic white

house color:

plastic blue

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

optical fiber attenuator

inline optical attenuator

Ürün Tanımı

LC Mechanical VOA Attenuator, LC MVOA Attenuator, Fiber Optic Attenuator

LC Mechanical variable optical attenuator is generally used in optical measurement. In the when

measure optical receiver sensitivity, usually place in the optical receiver input to adjust receiving

light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic connector with

all high performance of connectors.

When use optical attenuator, please keep the environment clean and dry, put on the dust cap

when not in use, handle with care, strictly forbid collision.

Feature:

Low PDL
Attenuation 1dB to 30dB
Compact size, light weight
Low reflection loss
High power tolerance,long-term stability
Independent of the wavelength effect
Precisely control attenuation range
Simple operation
Meet the GR910

Application:

EDFA power amplifier
The power balance in the system
CATV
Optical add-drop multiplexer in the optical power regulator

Specification:

Parameter	Condition	Value
Attenuation(dB)	UPC	1~30
Attenuation(dB)	APC	1~30
Return loss(dB)	UPC	>50
Return loss(dB)	APC	>60
Operating wavelength(nm)	1310, 1550, 1240, 1600
Attenuation accuracy	1~4dB	≤0.5dB
Attenuation accuracy	5~30dB	<10%
Operating temperature()	-	-40 ~ +75
Storage temperature()	-	-40 ~ +85
Polarization Dependent Loss(dB)	-	<0.2
Relative humidity (%)	75	95
Vibration(dB)	10 ~55,2Hrs	∆IL≤0.2
Impact(dB)	1.5m,5 drops	∆IL≤0.2

LC Mechanical VOA LC MVOA Fiber Optic Attenuator Single Mode For EDFA Power Amplifier 0
