FC PC Plug In Type Single - mode Fiber Optic Attenuator 3dB , 5dB , 10dB , 15dB

Name: FC PC Plug In Type Single - mode Fiber Optic Attenuator 3dB , 5dB , 10dB , 15dB
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-FCS-01-B03
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-FCS-01-B03
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc

test wavelength:

1310nm /1550nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+75 (℃)

Fiber optic type:

single-mode,multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC FC LC ST E2000 MU

dust cap color:

white

connector shape:

plug-in type

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

inline optical attenuator

Ürün Tanımı

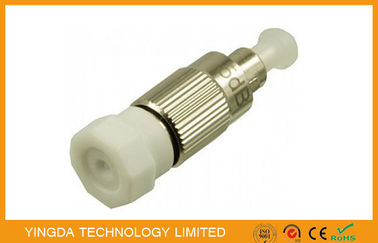

FC Plug In Type Fiber Optic Attenuator 3dB, FC PC Build Out Attenuator 5dB, 10dB,15dB

YINGDA TECHNOLOGY LIMITED provide high quality of Male to Female Plug-in type fixed optical

attenuator, attenuation value 1dB ~ 20dB,use imported fiber with light absorbing metal ion, with

superior environmental stability and low reflectivity. The front end of attenuator is the male head,

can directly insert into the adapter of the receiving equipment or distribution panel. Its back-end

is female connector, connect with the jumper .

Male and female type (M-F) optical fiber attenuator has SC, FC, ST, LC, MU,etc.

Features:

Bellcore Compliant
Wavelength Independent (DWDM)
Durability (well over 100mw)
Simple and Reliable Structure
Applications:
Telecommunication Networks
Data Networks
Video & CATV

Application

1.Optic-fiber Communication Systems

2.Optical Fiber Sensor

3.Optical Fiber Test Equipment

4.Optic-fiber CATV

Specification

Item	Standard	Wavelength Flattened	Broadband
Operating Wavelength(nm)	1310 or 1550		1310/1550
Bandwidth(nm)	±20	±40
Attenuation value (dB)	1~30
Return Loss (dB)	≥40
Operating Temperature oC	-40~+85
Storage Temperature oC	-40~+85
Industry Standard	Telcordia TA-NWT-001209

FC PC Plug In Type Single - mode Fiber Optic Attenuator 3dB , 5dB , 10dB , 15dB 0

FC PC Plug In Type Single - mode Fiber Optic Attenuator 3dB , 5dB , 10dB , 15dB 3
