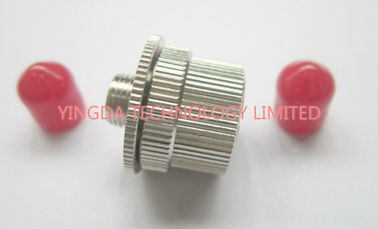

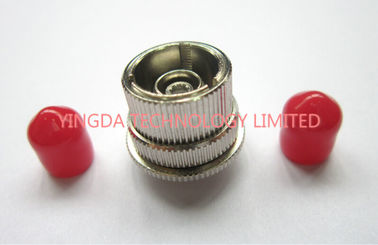

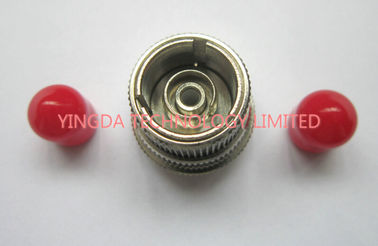

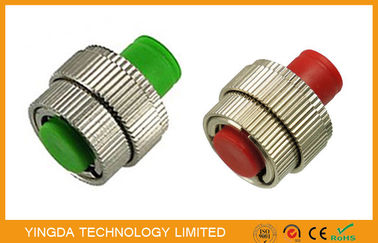

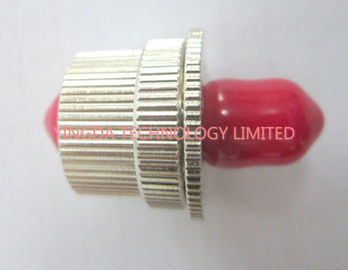

FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um

Name: FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-FCS-VOA-01
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-FCS-VOA-01
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO, SGS

Attenuation:

0-30dB

test wavelength:

1200-1650nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode

industry standard:

Telcordia TA-NWT-001209

connector type:

FC/PC

dust cap:

red

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

inline optical attenuator

Ürün Tanımı

FC Variable Fiber Optic Attenuator, FC APC 0-30dB VOA Attenuator

FC Mechanical Adjustable (variable) optical attenuator is generally used in optical measurement.

In the when measure optical receiver sensitivity, usually place in the optical receiver input to adjust

receiving light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic

connector with all high performance of connectors.

When use optical attenuator, please keep the environment clean and dry, put on the dust cap

when not in use, handle with care, strictly forbid collision.

Features	Application
Good Interchangeability and repetition	Equipment test
Accurate attenuation value	The connection between equipment
High reliability	The connection between jumper
A variety of optional	Cable TV network
comply with IEC standards and ROHS requirements	metropolitan area network, wide area network

Specification

Item	Single mode 9/125um
Test wavelength	1310nm, 1550nm
Return loss	≥60.0dB
Working wavelength range	1250~1650nm
The attenuation range	0~30dB
The attenuation values of tolerance	0~5dB, ±0.5dB
The attenuation values of tolerance	5~30dB, ±10%
Repeatability	≤0.10dB
Interchangeable	≤0.20dB
Plugging performance	Pulg 1000 times,attenuation change ≤0.20dB
The maximum input optical power	≤200mW
Working temperature	-20℃to +70℃
Storage temperature	-40℃to +85℃

FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um 0
