Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB

Adedi:	100PCS
fiyat:	Anlaşılabilir
Standart paketleme:	50 pc / plastic blister box or
Delivery period:	3-5 days
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	50,000pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

Model Number

ATTN-STS-01-B20

Attenuation:

1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc

test wavelength:

1310nm /1550nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+75 (℃)

Fiber optic type:

single-mode,multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC FC LC ST E2000 MU

dust cap color:

connector shape:

plug-in type

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Vurgulamak:

build out attenuator

optical fiber attenuator

Ürün Tanımı

ST Attenuator Female To Male,1dB, 2dB, 3dB, 5dB, 7dB, 20dB Build Out Atenuator

Description

ST Build out fix Optical fiber attenuator is made of high precision standard dust. Refined. It use for

a variety of optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the adapter

and attenuator both functions.

Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical

fiber network system, the low speed optical fiber transmission system.

Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable

(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..

From the microwave network point of view, attenuator is a two port lossy microwave networks.

It belongs to pass type microwave components.

Main application

(1) to control the power level: the output power of the vibration control in microwave super heterodyne

receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.

In the microwave receiver, automatic gain control, improve dynamic range.

(2) decoupling components: as to the coupling element between the oscillator and the load.

(3) the relative standard: as a comparison of the relative standard of power level.

(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value can

mutate, usually without introducing attenuation, encountered outside interference, a sudden

increase in attenuation.

Main features

Made of attenuation optical fiber, excellent performance
Simple structure, compact size, easy to install
Stable performance, high reliability
Suitable for 1260 ~ 1650nm wide wavelength
High reflection loss, low insertion loss

Specification

Item	Standard	Wavelength Flattened	Broadband
Operating Wavelength(nm)	1310 or 1550		1310/1550
Bandwidth(nm)	±20	±40
Attenuation value (dB)	1~30
Return Loss (dB)	≥40
Operating Temperature oC	-40~+85
Storage Temperature oC	-40~+85
Industry Standard	Telcordia TA-NWT-001209

ST female to male plut-in type attenuator multimode, dust cap color: yellow

Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB 0

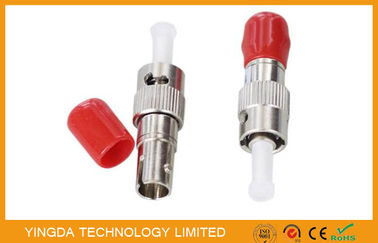

ST female to male plut-in type attenuator single mode, dust cap color: red

Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB 1

ST female to female adapter type attenuator:

Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB 2
