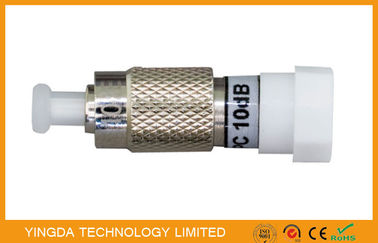

FC Plug - in Fiber Optic Attenuator 10dB Female to Male SC FC LC ST E2000 MU
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xAttenuation | 1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc | test wavelength | 1310nm /1550nm |
---|---|---|---|
body material | metal | Additional loss | 0.1dB |
Working temperature | -40~+75 (℃) | Fiber optic type | single-mode,multimode |
industry standard | Telcordia TA-NWT-001209 | connector type | SC FC LC ST E2000 MU |
dust cap color | white | connector shape | plug-in type |
Vurgulamak | optical fiber attenuator,inline optical attenuator |
FC Plug-in Attenuator 10dB, Build Out Attenuator FC/PC 10dB Female to Male
Optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety of
optical fiber transmission line, high precision attenuation, stable and reliable performance.
Performance characteristics have no relationship with wavelength change, can realize the
adapter and attenuator both functions.
YINGDA TECHNOLOGY LIMITED provide high quality of Male to Female Plug-in type fixed optical
attenuator, attenuation value 1dB ~ 20dB,use imported fiber with light absorbing metal ion, with
superior environmental stability and low reflectivity. The front end of attenuator is the male head,
can directly insert into the adapter of the receiving equipment or distribution panel. Its back-end
is female connector, connect with the jumper .
Male and female type (M-F) optical fiber attenuator has SC, FC, ST, LC, MU,etc.
Features:
- Bellcore Compliant
- Wavelength Independent (DWDM)
- Durability (well over 100mw)
- Simple and Reliable Structure
- Applications:
- Telecommunication Networks
- Data Networks
- Video & CATV
Application
1.Optic-fiber Communication Systems
2.Optical Fiber Sensor
3.Optical Fiber Test Equipment
4.Optic-fiber CATV
Specification
Item |
Standard |
Wavelength Flattened |
Broadband |
Operating Wavelength(nm) |
1310 or 1550 |
1310/1550 |
|
Bandwidth(nm) |
±20 |
±40 |
|
Attenuation value (dB) |
1~30 |
||
Return Loss (dB) |
≥40 |
||
Operating Temperature oC |
-40~+85 |
||
Storage Temperature oC |
-40~+85 |
||
Industry Standard |
Telcordia TA-NWT-001209 |
