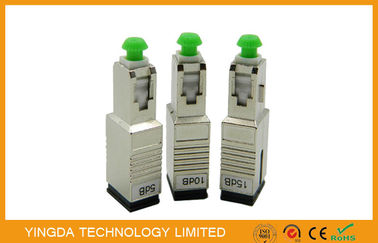

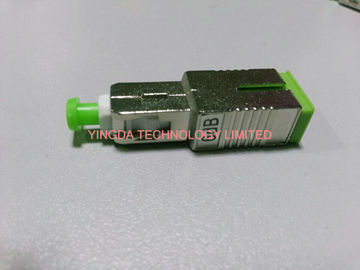

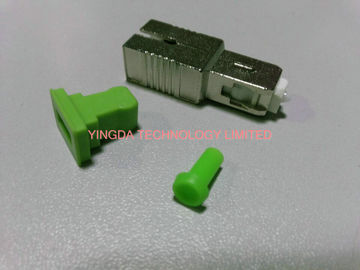

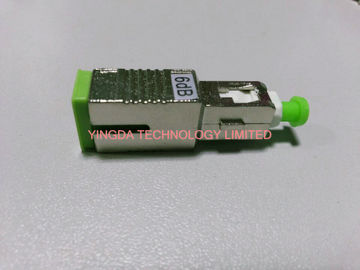

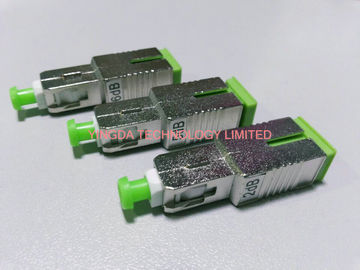

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve

Name: SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-MU-01-B07
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-MU-01-B07
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

1dB - 20dB fix

test wavelength:

1310nm, 1550nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode, multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

SC/APC

dust cap color:

Green

connector shape:

female to male attenuator

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

inline optical attenuator

Ürün Tanımı

SC APC SM 1dB Attenuator, Fiber Optic Build Out Attenuator SC 1dB, SC Attenuator

Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .

Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.

Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.

Features:

High precision attenuation value
Low additional loss
High durability
High reliability and stability
Connector type: FC, SC, LC, ST, FC/SC or other type

Material:

metal Housing
Ceramic Zirconium Sleeve
dust cap color; green for APC, black for UPC

Specification:

Return Loss:	Less than 50 dB (SPC)
	Less than 55 dB (UPC)
	Less than 65 dB (APC)
Attenuation Accuracy:	+/-0.5 (1-10)
	+/-1.0 (11-30)
Polarization Dependent Loss:	Less than 0.2dB
Maximum Optical Input Power:	200mW
Operating Temp. Range:	-40 ~ 80°C

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 0

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 4
