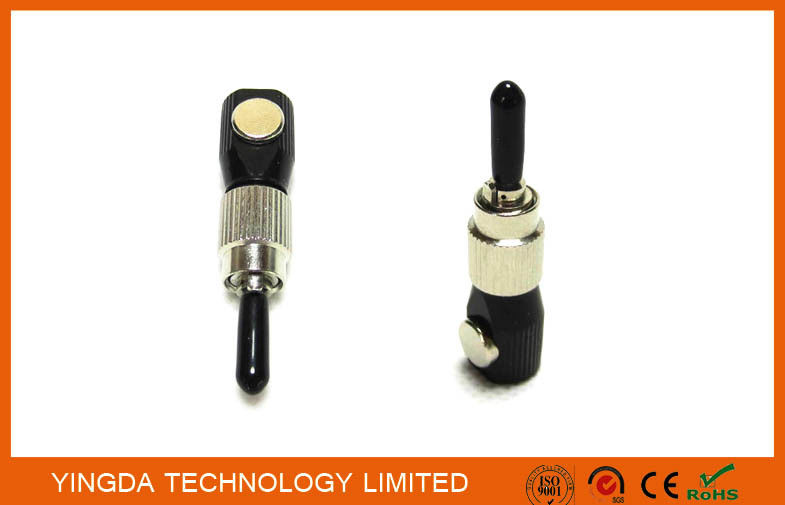

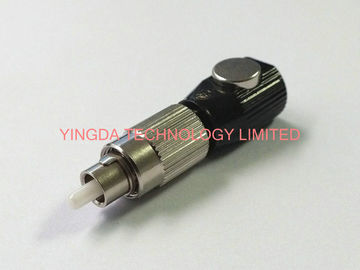

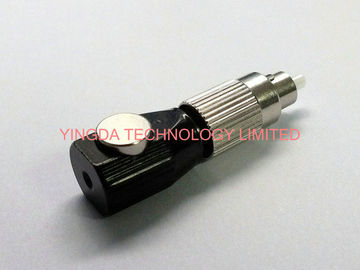

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler

Name: Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ADB-FC-RD
Price: 1.04 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ADB-FC-RD
Adedi:	100 PCS
fiyat:	0.04USD-2.15USD
Teslim Zamanı:	3 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO,SGS

material:

Metal

color:

blue, gray, black

shape:

round

type:

fiber optic bare adapter

weight:

12g

Fiber type:

single-mode

Ürün Adı:

mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti

Packaging Details:

1 pc / bag or 10 pc/ blister box

Supply Ability:

50,000pcs per month

Vurgulamak:

Fiber optik bağlantı

çıplak fiber adaptörü

Ürün Tanımı

FC Bare Fiber Adapter, Bare Fiber Optic Adapter Coupler FC / PC Round

Description

The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.

FC Round Bare Fiber Adapter can link bared optic and light source ,testing equipment, light

appearance etc,and the products used for test appearance and temporary conjunction between

fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one

side, the other side is a connector that can plug into the equipment.

Feature

Simplex and quickly interconnect
Low insertion loss
Repeatability and exchangeability good
Stabilize the credibility
Interchangeable connector heads available

Application

Testing fiber on the reel
Optical fiber through connection test
Two-way communication during optical-fiber cable installation and maintenance
First-aid repair,temporary connection and testing on optical fiber project.

Specification

Shape	Square / Round
Connector	FC/PC, SC/PC, ST/PC, LC/PC
Applicable fiber	SM & MM
Ferrule diameter	123-127 um
Ferrule outder diameter	2.499mm 1.249mm
Cable diameter	250um & 900um
Insertion Loss	≤0.20dB
Repeat ability	＜0.2dB
Tensile strength	100g
Plug time	>1000 times
Operating Temperature	-40 ~+85℃
Size	Length:40mm, diameter:30mm

Diameter 30mm Simplex Bare Fiber Adapter 123 - 127 um , Optic FC / PC Coupler 0
