Blue Fiber Test ST / PC Bare Fiber Optic Adapter , ST Fiber Adapter Singlemode

Menşe yeri Çin
Marka adı YINGDA
Sertifika ISO,SGS
Model numarası ADB-ST-SQ
Min sipariş miktarı 100 PCS
Fiyat Negotiable
Ambalaj bilgileri 1 pc / bag or 10 pc/ blister box
Teslim süresi 3 days
Ödeme koşulları T/T or western Union
Yetenek temini 50,000pcs per month

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
material Metal, Plastic house color blue, black, gray
shape square type bare fiber optic adapter
weight 12g Fiber type single-mode,multimode
polish methold UPC insertion loss <0.2dB
Vurgulamak

Fiber optik bağlantı

,

Fiber optik adaptörü

Mesaj bırakın
Ürün Açıklaması

Blue Fiber Test ST / PC Bare Fiber Optic Adapter, ST Fiber Adapter Singlemode





The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the

highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed

flange adapters design and manufactured.



Hybrid adapter can connected different types of fiber optic patch cord, also provide APC end face

connection, duplex or multi-fiber high density installation.



Bare fiber adapter is a kind of professional auxiliary tool for optical fiber test, especially for fiber

emergency repair and temporary connection.





Model: FC/PC, SC/PC,ST/PC,LC/PC available





Main characteristics:

  • Low insertion loss
  • Good repeatability
  • Easy to use
  • Length: 40MM, Diameter: 13MM
  • Temperature cycle test:-40-+80 °C
  • Interchangeability < 0.2dB
  • Convenient operation, can be observed by the naked eye
  • Reusable, single mode / multi-mode fiber can be used
  • Low insertion loss,  good reflecting inhibition



Application

  1. Bare fiber connector device production
  2. Experiment fiber test



How to use:

1. Strip the fiber coating layer (15-20mm) and cleaned with alcohol;

2. Press down the optical fiber adapter switch, push the fiber along the guiding hole slowly until out

    of the ceramic ferrule (5-6mm),then relax and open ;

3. Use ruby knife delimit fiber bottom gently so as to expose part of fiber, break off the fiber.



Specification



Shape

Square / Round

Connector

FC/PC, SC/PC, ST/PC, LC/PC

Applicable fiber

SM & MM

Ferrule diameter

123-127 um

Ferrule outder diameter

2.499mm 1.249mm

Cable diameter

250um & 900um

Insertion Loss

≤0.20dB

Repeat ability

<0.2dB

Tensile strength

100g

Plug time

 >1000 times

Operating Temperature

-40 ~+85℃

Size

Length:40mm, diameter:30mm

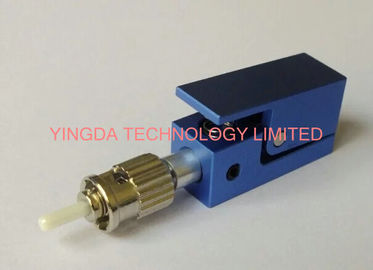

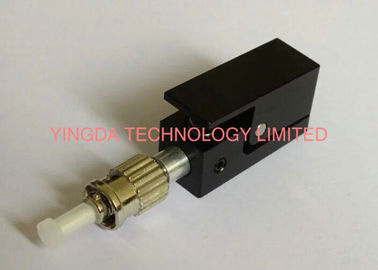

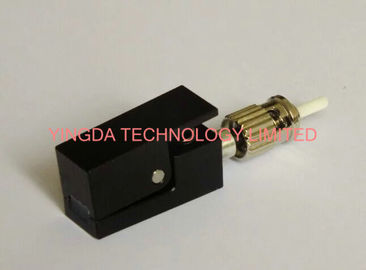

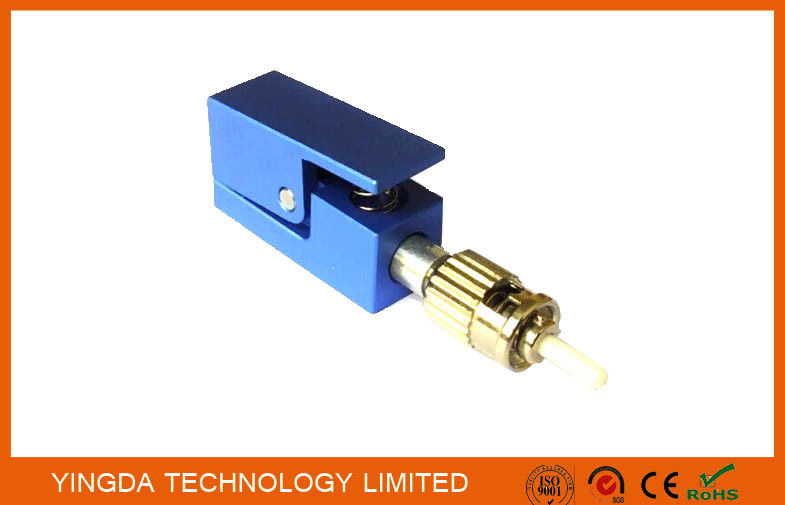

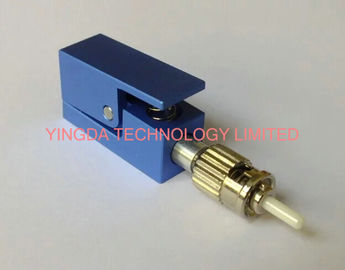

ST Fiber Optic Adapter Bare Fiber Square Type:
