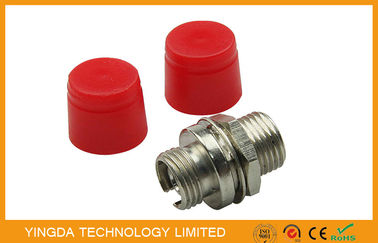

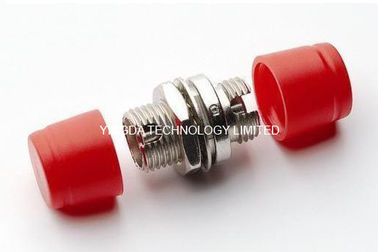

PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler

Name: PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler
Brand: YINGDA TECHNOLOGY LIMITED
SKU: AD-FC-SM01-R
Price: 1.04 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	AD-FC-SM01-R
Adedi:	10km
fiyat:	0.04USD-2.15USD
Teslim Zamanı:	5 working days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO,SGS

Fiber count:

1 fibers

connector material:

metal + plastic

dustcap color:

red

sleeve material:

ceramic

outer sheath:

LSZH

fiber type:

single mode SM

polish mode:

UPC / PC

working temperature:

-40 ~ +80 °C

Ürün Adı:

mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti

Packaging Details:

50 pc / box

Supply Ability:

200km/ month

Vurgulamak:

Fiber optik bağlantı

çıplak fiber adaptörü

Ürün Tanımı

CATV Fiber Optic Adapter FC Small D Hole, FC Adapter D Hold SM SX

Fiber Optic Adapter (also called coupler), is a kind of connector in optical fiber transmission,

whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,

MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),

optical Fiber communication equipment, instruments, etc.It is superior performance, stable and

reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.

Features

Low insertion loss< 0.2 dB
Good interchangeability
Good repeatability
100% test in factory
Blister box or plastic bag pack
PBT or ABS material

Application

optical fiber communication system
cable TV network
local area network (LAN), optical network domain
optical fiber to the home (FTTP)
video transmission
test instruments

Specification

Item	Value
Wavelength	1200-1600nm
Polish method	UPC,PC,APC
IL	≤0.2dB
Max. IL	≤0.3dB
Repeatability	≤0.1dB
Interchangeability	≤0.2dB
Sleeve material	Cermic or metal
Working/Storage temperature	-40~+85℃
Matings time	>1000
Standard	Bellcore TA-NWT-001221/001209

Order information

Endface	Fiber mode	Fiber core	Sleeve
PC	Multi mode	simplex	Cermic
UPC	Single mode	duplex	Phosphor bronze

All FC Fiber Adapter Models:

PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler 0

FC Adapter Small D hole More Details:

PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler 1
