SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly

Name: SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly
Brand: YINGDA TECHNOLOGY LIMITED
SKU: AD-SCA-01/S
Price: 1.04 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	AD-SCA-01/S
Adedi:	100pcs
fiyat:	0.04USD-2.15USD
Teslim Zamanı:	5 working days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO,SGS

Fiber count:

simplex adapter

connector material:

plastic

adapter color:

green

sleeve material:

ceramic

fiber type:

singlemode

polish mode:

APC

insetion loss:

< 0.2dB

house material:

ABS

connector:

shutter material:

plastic transparent

Ürün Adı:

mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti

Packaging Details:

50 Pcs / box

Supply Ability:

200km/ month

Vurgulamak:

Fiber optik bağlantı

Fiber optik adaptörü

Ürün Tanımı

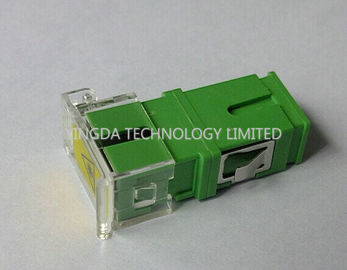

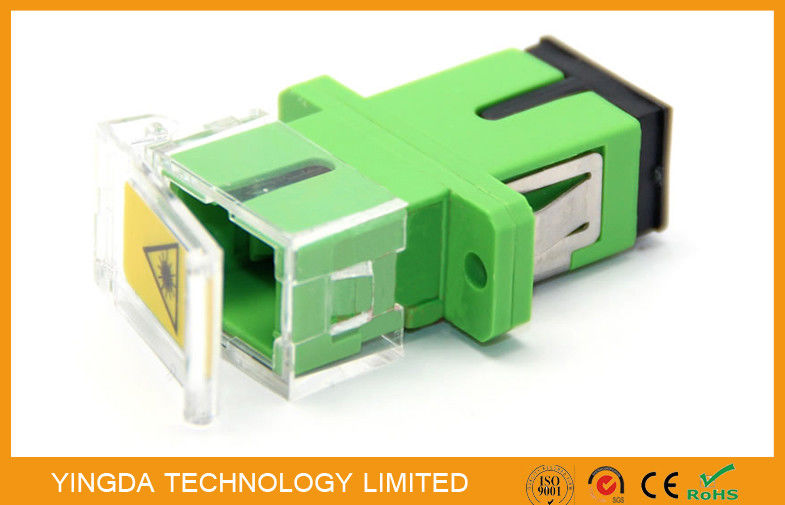

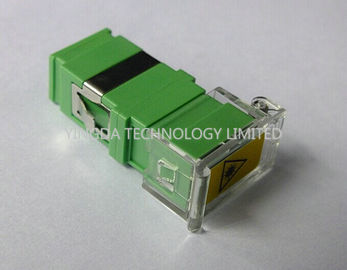

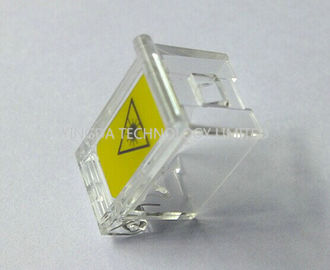

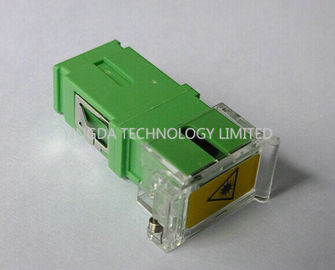

SC Fiber Optic Adapter With Shutter Transparent Plastic, SC Shutter Adapter Back Cover

SC simplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters

are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered

adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the

same precision and optical performance as the normal adapter.

YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are

available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types.

The connector color can be blue, green, gray or aqua. It is used to align and join two or more

fiber-optic connection, to ensure alignment of two fiber-optic connections.

Features

Compliant with: ANSI, Bellcore, TIA/EIA standards
Dust caps protect against debris and contamination
Low insertion <0.2dB
high return loss >55dB
Active device termination

Specification

Characteristics	Conditions	Values
Durability	500times	<0.2dB
Temperature Cycling	-40 ~ +80℃ (42Cycles)	<0.2dB
Humidity Cycling	75℃, 95%/336hr	<0.2dB
Vibration	10~55Hz(2hr)	<0.2dB
Impact	1.5m drop, 8times	<0.2dB

Application

Telecommunication
CATV
Data Communications
Instrumentation
Local Area Networks

Order information

Connetor type	SC, LC
Cable type	SM, OM1, OM2, OM3, OM4
Fiber count	Simplex, duplex, quad
Sleeve	Ceramic, Phosphor bronze
Connector color	Blue, green, beige, aqua, purple
Shutter material	Plastic, metal
Polish method	UPC, PC, APC
