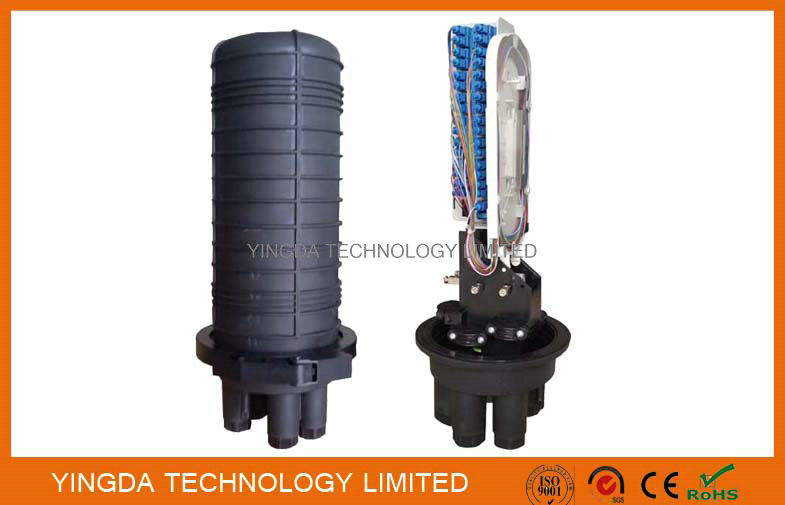

PP Mekanik Fiber Kablo Ortak Kutu, Kutup Dağı Splice Fiber Optik Ortak Kutu

Name: PP Mekanik Fiber Kablo Ortak Kutu, Kutup Dağı Splice Fiber Optik Ortak Kutu
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GJS-306
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	GJS-306
Adedi:	100pcs
fiyat:	Anlaşılabilir
Teslim Zamanı:	7-10 days
Ödeme Şartları:	T/T, Western Union, MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Malzeme:

Max kapasite:

48 fiber (tek füzyon)

Kablo Bağlantı Noktaları:

1 oval port, 4 yuvarlak port

Kablo çapı:

24 mm, 17,5 mm

PLC splitter:

mak. 2.x32 splitter - 1 adet, 2x16 splitter - 2 adet

SC adaptörü:

36 adet

SC Pigtails:

32pcs

Boyut:

450 * 230 mm

müşteri logosu:

etiketli kutuda

mühürleme:

Mekanik sızdırmazlık

Uygulanabilir:

açık FTTH yarma ve dağıtım

Packaging Details:

1pc/box, 4pcs/carton box

Supply Ability:

10000pcs/month

Vurgulamak:

Fiber optik kablo bağlantı kutusu

fiber optik kablo eklem kutusu

Ürün Tanımı

PP Mechanical Fiber Optic Enclosures For SC Adaptor Pole Mount Splice Fiber Optic Joint Box

Model: GJS-306

GJS-306 is dome splicing closure, It has function of direct connection and branch connection and

protection for connectors. Ip 68 RATED, IT CAN INSTALL 1 PC 2X32 plc splitter and 2pcs 2x 16 PLC

splitters, with four small cable inlets and 1 big cable inlet. Vulcanized rubber sealing material, suitable

for aerial, pole, wall mounted, and buried installation.

Features:

May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member termination system included.
Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
Installation and reentry with a minimum of tools
All hardware are included
material:pp

Product Pictures

PP Mekanik Fiber Kablo Ortak Kutu, Kutup Dağı Splice Fiber Optik Ortak Kutu 0

1	Case	4	Plastic clamp
2	Cable storage part	5	Base
3	O-shape sealing ring	6	Grounding part

Main parts:

S/n	Item	Quanitty	Usage	Note
1	Case	1	Protection
2	Storage tray	Upon requirement	Fix cable, protect sleeve,store and split cable
3	PLC splitter (maxi. 2x32)	2:32 (1pc) 2:16 (2pcs)	Splitting	Optional
4	Sc adapter	36	Connection	Optional
5	Sc -1.5meter pigtails	32	Splice or direct connect drop cable	Optional
6	Base	1	Fix
7	Plastic clamp	1	Fix the base and case
8	O-shape sealing ring	1	The big one used to seal the base and case and small one used to seal the cable
9	Plastic plug	4	Seal the holes without cable
10	Valve	1	Test air pressure and sealing status	optional
11	Grounding part	1	Internal component grounding	Optional

Optional cable sealing elements for small round ports:

PP Mekanik Fiber Kablo Ortak Kutu, Kutup Dağı Splice Fiber Optik Ortak Kutu 1

Specification:

Model	GJS-306
Size (Height*Diameter)	450*230mm
Splice fiber storage capacity (single fusion)	48 fibers fusion splice, 1x32, 1x16, 1x8 splitter
Cable ports	1 oval ports + 4 round ports
Max. Diameter of cable	1oval port: for 1 loop cble with max. Diameter 24mm; 4 round ports: each port for 1 cable with max. Diameter 17.5mm, or each port for 8 pcs of drop cable with diameter 2x3.1mm
Material	PP
MOQ	50PCS

Preparation to install:

Check cable and accessories
Keep dry and clean for all accessories
Keep worksite clean, dry and dust free
Tools for cable stripping and installation
Don’t over bend the cable when store it
Tools

Additional tools needed (not provided by supplier):

Item	Usage
Making note	Mark and temporary fix
Alcohol	clean
Emery cloth	clean
Stripper for transverse direction	Strip cable in transverse way
Stripper for longitudinal direction	Strip cable in vertical way
Stripper for bare cable	Strip bundle cable jacket
Tape measure	Length measurement
Cable cutting tool	Bundle cable stripping
Electrician knife
Wire-cutter	Cut metal wire
Screw wrench	Fix screw
Scissors
Splice machine	Splicing
Thermal shrinkage device	Connecting cable
OTDR	test

Closure laying and installation methods:

PP Mekanik Fiber Kablo Ortak Kutu, Kutup Dağı Splice Fiber Optik Ortak Kutu 2

Aerial mounting & wall mounting Pole mounting

Package information

4pieces/ carton
Gross weight / carton: 13.5kgs
Carton size: 54*49*47cm

More photos

PP Mekanik Fiber Kablo Ortak Kutu, Kutup Dağı Splice Fiber Optik Ortak Kutu 4
