Açık FTTH Bölme için 1 x 32 PLC Spliter Fiber Optik Kablo Ortak Kutusu 36 Fiber

Adedi:	100pcs
fiyat:	Anlaşılabilir
Standart paketleme:	1pc/box, 4pcs/carton box
Delivery period:	7-10 days
Ödeme yöntemi:	T/T, Western Union, MoneyGram
Tedarik Kapasitesi:	10000pcs/month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

Model Number

GJS-306

Malzeme:

Max kapasite:

48 fiber (tek füzyon)

Kablo Bağlantı Noktaları:

1 oval port, 4 yuvarlak port

Kablo çapı:

24 mm, 17,5 mm

PLC splitter:

mak. 2.x32 splitter - 1 adet, 2x16 splitter - 2 adet

SC adaptörü:

36 adet

SC Pigtails:

32pcs

Boyut:

450 * 230 mm

müşteri logosu:

etiketli kutuda

Uygulanabilir:

açık FTTH yarma ve dağıtım

mühürleme:

mekanik veya heatshrink sızdırmazlık

Vurgulamak:

Fiber optik kablo bağlantı kutusu

fiber optik kablo eklem kutusu

Ürün Tanımı

36 Fibers SC Adapter Fiber Optic Splice Closure 1x32 PLC Spliter Optical Distribution Box

Model: GJS-306

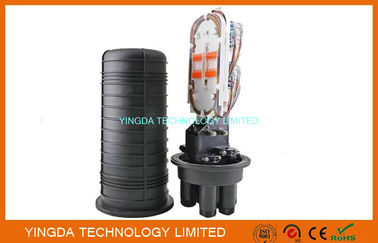

GJS-306 is dome splicing closure, It has function of direct connection and branch connection and

protection for connectors. Ip 68 RATED, IT CAN INSTALL 1 PC 2X32 plc splitter and 2pcs 2x 16 PLC

splitters, with four small cable inlets and 1 big cable inlet. Vulcanized rubber sealing material, suitable

for aerial, pole, wall mounted, and buried installation.

Features:

May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member termination system included.
Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
Installation and reentry with a minimum of tools
All hardware are included
material:pp

Açık FTTH Bölme için 1 x 32 PLC Spliter Fiber Optik Kablo Ortak Kutusu 36 Fiber 0

Specification:

Model	GJS-306
Size (Height*Diameter)	450*230mm
Splice fiber storage capacity (single fusion)	48 fibers fusion splice, 1x32, 1x16, 1x8 splitter
Cable ports	1 oval ports + 4 round ports
Max. Diameter of cable	1oval port: for 1 loop cble with max. Diameter 24mm; 4 round ports: each port for 1 cable with max. Diameter 17.5mm, or each port for 8 pcs of drop cable with diameter 2x3.1mm
Material	PP
MOQ	50PCS

Standard package:

Dome, Base, Clamp,O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, Cable ties, Grounding wire, Labeling paper, Installation Manual,

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+2 pcs of aluminium paper(10cm x 10 cm)+sand paper(2.5 x30mm)+2 bags cleaning tissue+ branching clip etc

4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of aluminium paper(10cm x 10 cm)+sand paper etc

Açık FTTH Bölme için 1 x 32 PLC Spliter Fiber Optik Kablo Ortak Kutusu 36 Fiber 1

Installation procedure

Open the closure
Choose the proper inlet to take out the fix screws
Put stripped cable into sealing part and base
Fix he cable and steel port
Put all sealing kits to inlet and fix screws
Splice, connection, cable storage, fix the trays
Clamp the base and case
Install the external part fix the closure body

KIND NOTES:

When customer install splitter himself, please pay attention to the cable length of splitter output

and input pigtails.

Output pigtails (±2cm)	(Input part) difference length (±2cm)
Output pigtails (±2cm)	1-8	9-16	17-24	25-32
135CM	85CM	90CM	95CM	100CM

Açık FTTH Bölme için 1 x 32 PLC Spliter Fiber Optik Kablo Ortak Kutusu 36 Fiber 2

Order information

GJS-306-XX-XXX-XX-XX-XX-X-XX

1 - 2 - 3 - 4 - 5 - 6 - 7

item

Model

SC Adapter quantity

PLC splitter

input connector of PLC

output connector of PLC

Pigtail length

Installation kits

Optional accessories

GJS-306

01=1pc

02=2pc

...

36=36pcs

Xx=not include

102=1x2

104=1x4

...

132=1x32

202=2x2

...

232=2x32

Xx=not include

SA=SC/APC

SU=SC/UPC

Xx= customized

Xx=not include

SA=SC/APC

SU=SC/UPC

Xx= customized

05=0.5meter

10=1.0meter

15=1.5meter

Xx= customized

A=aerial mounting

W=wall mounting

P=pole mounting

Xx=not included

Ground device=GD

Air valve=AV

XX= not include
