Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores

Name: Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB104A
Price: 2.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	FTB104A
Adedi:	100 PCS
fiyat:	0.18USD-4.29USD
Ödeme Şartları:	Western Union, MoneyGram, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO,SGS

color:

white

material:

cold rolled steel

connector:

SC adapter

fiber count:

4 cores

size(H*W*D):

115*135*41.5 mm

cable port:

2 pcs

cable diameter:

5~10mm

Packaging Details:

1pc/ box, 50pcs/ carton box

Vurgulamak:

Fiber optik Terminal kutusu

Fiber optik dağıtım kutusu

Ürün Tanımı

Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores

Model: FTB104A

Sell point:

indoor wall mounting
cold rolled steel material
sample, LOGO OK
Individual pacakge
empty or fully load OK
100% test in house before shipment

Description:

Used in the end termination of residential buildings and villas,to fix and splice with pigtails.

Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function;

Max fiber capacity is 4 fibers SC, 4 adapters SC output, available for FC, SC, ST, LC Adapters.

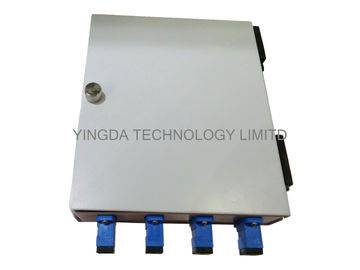

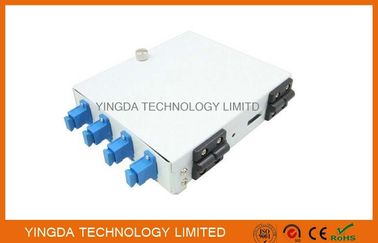

Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores 0

Features:

small size,light weight,pleasing in appearance
wall mounted with mechanical protection function
max fiber capacity 4 fibers,4 adapter output
available for FC,SC,ST,LC adapters
hinge and convenient press-pull button lock design
Environmental Temperature:-25°C~40°C;
Self-clip design,easy to operate

Application

FTTH network
Indoor
wall mount

Specifications:

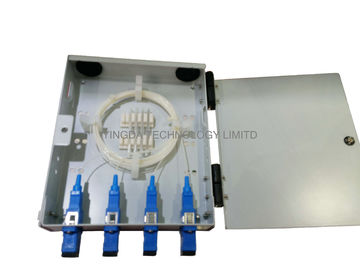

Indoor Fiber Optic Termination Box Metal SC Fiber Distribution Box 4 To 8 Cores 1

Model	FTB104A	FTB108A
Size(HWD)mm	11513541.5	11513541.5
Cable diameter (mm)	5~10	5-10
Cable ports	2 pcs	2 pcs
Max capacity of splice	4 cores	8 cores

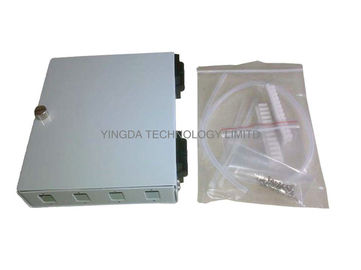

Standard accessories:

white protection kits	2 pcs
cable tie	4 pcs
adapter screws	16 pcs
buffer tube	1 pcs

Etiketler:

Fiber optik bağlantı kutusu

fiber optik dağıtım kutusu

fiber optik terminal kutusu
