16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room

Name: 16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1: 9 PLC Splitter
Price: 2.10 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	1: 9 PLC Splitter
Adedi:	100 PCS
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	Ödeme yapıldıktan sonra 5-8 gün
Ödeme Şartları:	Western Union, T/T, MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO, CE

Bölünme oranı:

MPO 16 Scores Optial Splitter

Fiber tipi:

G657A1

Ekleme kaybı:

2,2dB / 16,3dB

Bağlayıcı:

SC APC Konnektörü

Dalga boyu:

1260 - 1650nm

PDL(Maks.):

0.3dB

Standart:

Telcordia GR-1221 ve GR-1209

Tüp boyutu:

60*7*4mm

Ambalaj bilgileri:

1pc/karton, 80pc/karton

Yetenek temini:

Ayda 10.000 PC

Ürün Tanımı

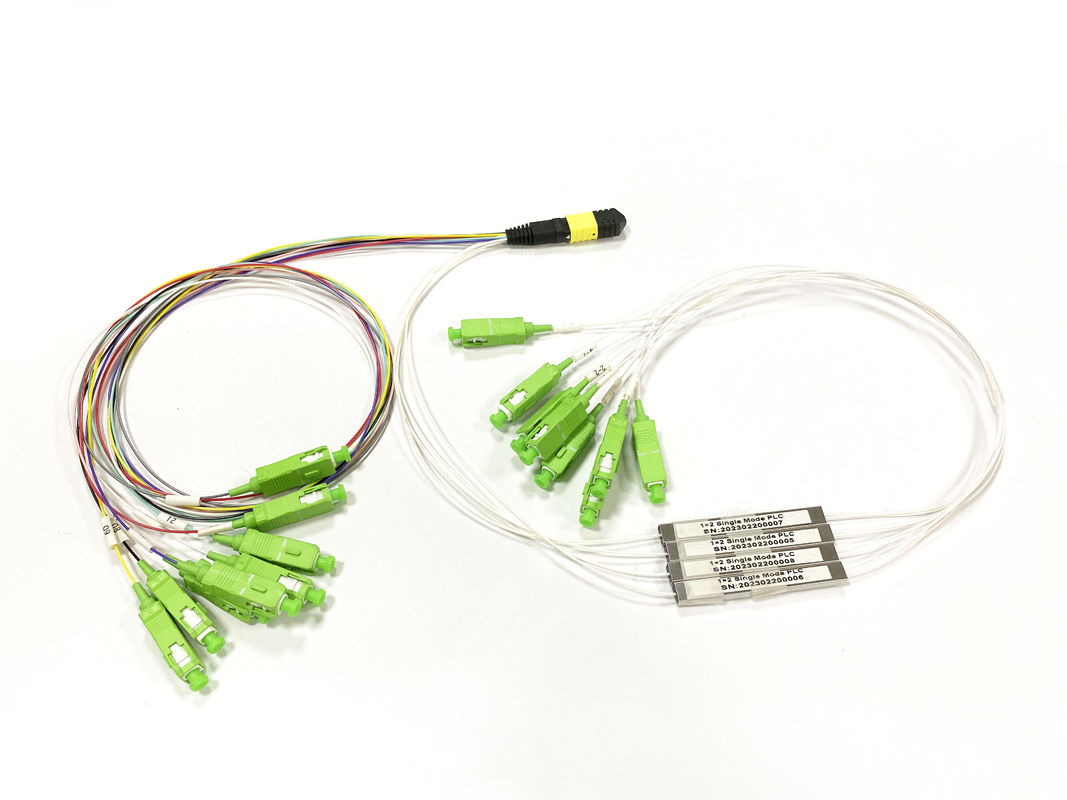

16Cores MPO Elite PLC Splitter 8cores MPO+ 4pcs 1*2 Sca Coupler Splitter Hybrid Splitter For Data Center Service room

Designed for data center applications requiring quick infrastructure deployment such as main, horizontal, and zone.

MTP/MPO trunk multifiber cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments, reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MTP/MPO fanouts.

Our company also provides a variety of MPO customization solutions, including MPO trunk patch cord, branch patch cord, MPO Optical splitter, etc.

Fiber Optic splitter Features

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High reliability and stability

• Connector can up to grade B

• 100% 3D tested by Daisi and Sumix

• High-low temperature cycle test

• 100% test before delivery

• FTTH Cabling solution could be design

1x9 Splitter Specification

Split ratio (%)		85/15	80/20	70/30	60/40
Operating wavelength (nm)		1260-1650
Fiber type		G657A or customized
IL max(dB)	channel 1	1.6	1.8	2.1	2.7
	channel 2-9	21.0	18.6	16.5	15.1
IL uni(dB)	Channel 2-9	1.8	1.8	1.8	1.8
Return loss (dB)		≥55
Directivity (dB)		≥55
PDL (max.)		0.3	0.3	0.3	0.3
Uniformity (max.)		0.8	0.8	0.8	0.8
Wavelength dependent loss (dB)		≤0.3
TDL (max.)		0.5
Operating temperature		-40 ~+85
Storage temperature		-40 ~+85
Dimension (mm) / LXWXH	Bare fiber	60x7x4	60x7x4	60x7x4	60x7x4
	900um	60x7x4	60x7x4	60x7x4	60x7x4
	ABS box	120x80x18	120x80x18	120x80x18	120x80x18

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors

Unbalanced optical splitter rate Detail information:

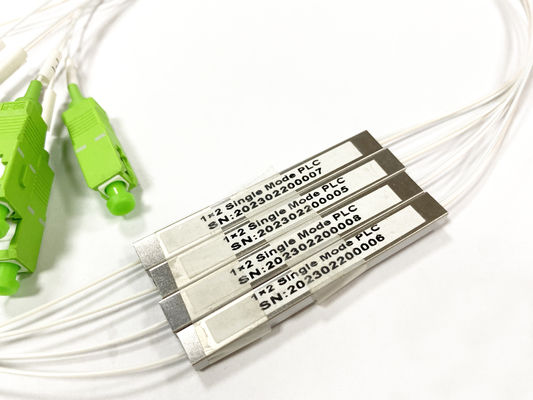

16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 0

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

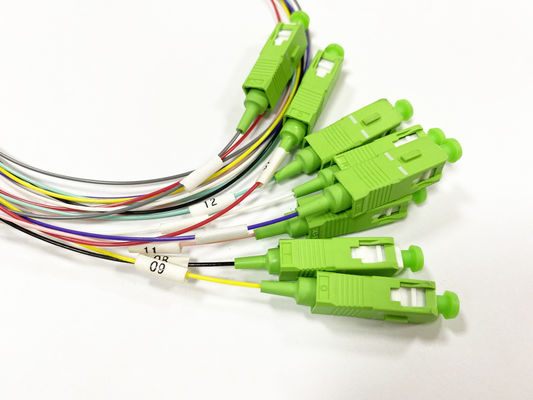

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.

16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 1

In order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;

All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC；

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc

GPON Splitter Application

Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
Supports multiple users to share a single PON interface.

16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 2

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.

Frequently work with CTO fiber box

16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 3

Fiber box CTO 10cores Fiber box CTO 12cores
