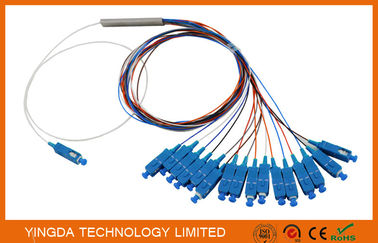

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector

Ürünler

fiber optik sonlandırma kutusu

SFP modülü

Bizimle İletişim

sales@yingdapc.cn

+86 18688982406

Şimdi iletişime geçin

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector

Adedi:	100 pcs
fiyat:	1.1USD-4.58USD
Standart paketleme:	2pc/ box, 20pcs/carton box
Delivery period:	5-8days after payment
Tedarik Kapasitesi:	10,000 pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

Model Number

1*16 mini plc splitter

split ratio:

1:16 blockless splitter

connector:

SC UPC

fiber type:

corning fiber SMF -28e G657A1

insertion loss:

13.6dB

Uniformity (Max.):

1.4dB

wavelength:

1260 - 1650 nm

PDL(Max.):

0.3dB

Standard:

Telcordia GR-1221 and GR-1209

tube dimension:

60*12*4mm

cable diameter:

0.9mm

cable color:

input blue, output: white

Vurgulamak:

Fiber optik bölücü

PLC splitter

Ürün Tanımı

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector

PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

Installation is simple using a variety of connector types or fusion splicing.

Features:

• Singlemode PLC Splitters in a variety of package types and configurations

• Optical performance 100% factory tested

• UPC, and APC polish types available for connectorized products

• Low Insertion Loss, Back Reflection and PDL

• Telcordia GR-CORE 1221 certified

More pictures

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 0

Technical Specs for PLC Splitter with Connector

1xn SPLITTER

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.2	≤7.6	≤10.7	≤14.0	≤17.2	≤20.8	≤24.0
P-Grade Insertion Loss(dB)	≤4.0	≤7.4	≤10.5	≤13.8	≤17.0	≤20.4	≤23.7
Uniformity(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

2XN splitter

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.4	≤8.0	≤11.0	≤14.6	≤17.8	≤21.0	≤24.4
P-Grade Insertion Loss(dB)	≤4.2	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7	≤24.0
Uniformity(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

PLC PRODUCTION LINES:

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector 8
