4 Port FC ST Fiber Optic Termination Box Metal Wall Mounted For Telecommunication
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xmaterial | metal | color | black |
---|---|---|---|
max capacity | 4 fibers | adapter | FC/ST |
cable ports | 2 Pcs | application | FTTH FTTX FTTB ODN PON network |
48cores dimension | 16*10*3.5cm | thickness | 0.6, 0.8, 1.0mm |
Vurgulamak | Fiber optik Terminal kutusu,Fiber optik bağlantı kutusu |

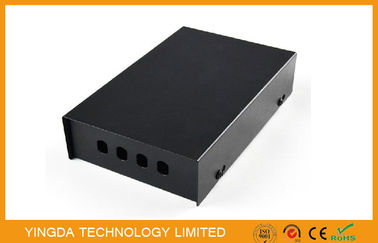

4 Port FC ST Fiber Optic Termination Box Metal Wall Mounted Indoor FTHH
Fiber optic wall mount termination box is an integrated unit for fiber management, and can be used
as distribution box. Its function is to fix and manage the fiber optic cables inside the box as well as
provide protection. The termination box is modular so they are applicable to your existing systems
without any modification or additional work.
Features:
1. The shell is high intensified & insulated material, thus having excellent mechanic performance and
2. it is solid and durable
3. strength core and shell was Insulation,add with grounding lead
4. Can be installed against wall
5. Full accessories for convenient operations
6. Dimension: 16*10*3.5cm
7. Net weight: 0.25kgs
8. Body material:steel, splice tray material: plastic ABS
9. Cable port: 2pcs, output: 4pcs SC/S/FC/LC adapters
Performance
1. excellent design,compact size, light weight
2. fiber lead grounding and perfect fixup reliable
3. pigtail fixup reliable and perfect protection
4. Apply to extensive field
5. convenient operations and maintenance
Technical parameters
Environment temperature |
-25~+45°C |
Relative humidity: |
≤85%( 30°C) |
Atmosphere pressure |
70-106KPa |
Insulated Resistance |
≥2×10MΩ/500V (DC) |
Intensity: |
≤15KV(DC)/1min no spark-over and no flying arc |
Bending radium |
≥40mm |
ApplicatIon
- Telecommunications
- Local Area Networks
- FTTH deployment
- CATV
