Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm

Name: Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-SC/ST S-MVOA-01
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-SC/ST S-MVOA-01
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

0-30dB Adjustable

test wavelength:

1310nm, 1550nm,850nm

body material:

metal

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode,multimode

connector type:

SC ST

polish:

UPC APC PC

house color:

green,blue, beige

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

inline optical attenuator

Ürün Tanımı

LC Mechanical Variable Attenuator, MVOA Attenuator 0-30dB LC/PC VOA Attenuator

LC Mechanical variable optical attenuator is generally used in optical measurement. In the when

measure optical receiver sensitivity, usually place in the optical receiver input to adjust receiving

light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic connector with

all high performance of connectors.

When use optical attenuator, please keep the environment clean and dry, put on the dust cap

when not in use, handle with care, strictly forbid collision.

Main usage:

(1) to control the power level: the output power of the vibration control in microwave super heterodyne

receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.

In the microwave receiver, automatic gain control, improve dynamic range.

(2) decoupling components: as to the coupling element between the oscillator and the load.

(3) the relative standard: as a comparison of the relative standard of power level.

(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value

can mutate,usually without introducing attenuation, encountered outside interference, a sudden

increase in attenuation.

Main features

Made of attenuation optical fiber, excellent performance
Simple structure, compact size, easy to install
Stable performance, high reliability
Suitable for 1260 ~ 1650nm wide wavelength
Low PDL
Attenuation 1dB to 30dB
Compact size, light weight
Low reflection loss
High power tolerance,long-term stability
Independent of the wavelength effect
Precisely control attenuation range
Simple operation
Meet the GR910

Application:

EDFA power amplifier
The power balance in the system
CATV
Optical add-drop multiplexer in the optical power regulator

Specification:

Parameter	Condition	Value
Attenuation(dB)	UPC	1~30
Attenuation(dB)	APC	1~30
Return loss(dB)	UPC	>50
Return loss(dB)	APC	>60
Operating wavelength(nm)	1310, 1550, 1240, 1600
Attenuation accuracy	1~4dB	≤0.5dB
Attenuation accuracy	5~30dB	<10%
Operating temperature()	-	-40 ~ +75
Storage temperature()	-	-40 ~ +85
Polarization Dependent Loss(dB)	-	<0.2
Relative humidity (%)	75	95
Vibration(dB)	10 ~55,2Hrs	∆IL≤0.2
Impact(dB)	1.5m,5 drops	∆IL≤0.2

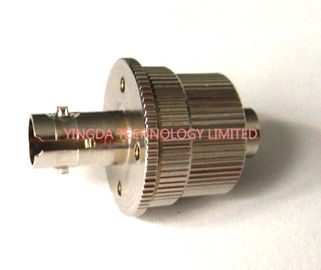

ST MVOA attenuator, metal 0-30dB variable adjustable fiber optic attenuator

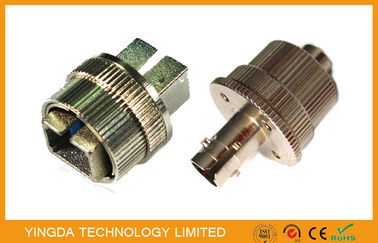

Variable Fiber Optic Attenuator VOA SC ST Connector SM UPC APC PC 850nm 0

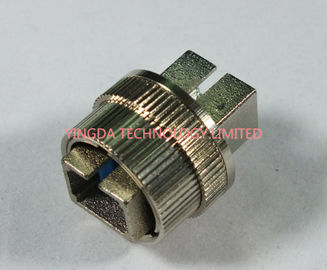

SC/PC, SC/APC MVOA attenuator, metal 0-30dB Mechanical adjustable fiber optic attenuator
