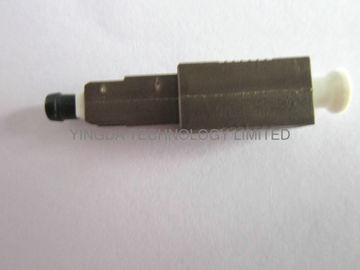

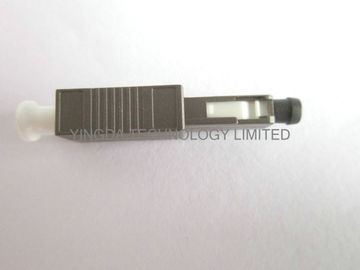

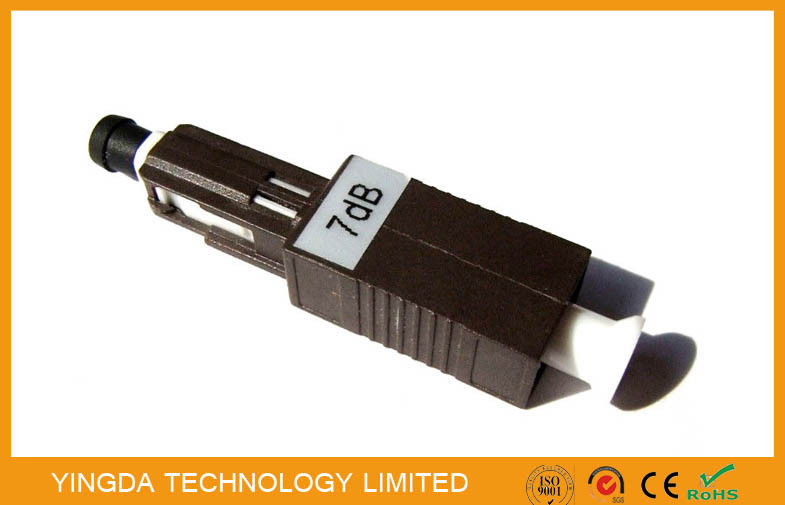

Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB

Name: Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-MU-01-B07
Price: 29.18 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ATTN-MU-01-B07
Adedi:	100PCS
fiyat:	Anlaşılabilir
Teslim Zamanı:	3-5 days
Ödeme Şartları:	T/T or western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Attenuation:

7dB, 10dB

test wavelength:

1310nm, 1550nm

body material:

plastic

Additional loss:

0.1dB

Working temperature::

-40～+85 (℃)

Fiber optic type:

single-mode, multimode

industry standard:

Telcordia TA-NWT-001209

connector type:

dust cap color:

black

connector shape:

female to male attenuator

Ürün Adı:

fiber ağ adaptörü,fiber optik bağlantı,medya dönüştürücü adaptör,mikrodalga zayıflatıcılar,yüksek gü

Packaging Details:

1 pc / plastoc bag

Supply Ability:

50,000pcs per month

Vurgulamak:

build out attenuator

optical fiber attenuator

Ürün Tanımı

FC/APC Female To Male Attenuator (FC APC F-M ), Plug-in Type Optical Attenautor

Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .

Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.

Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.

Features

Zirconia sleeve
Increases panel density and quick plug in installation
New SC footprint for duplex and 4 way design, more compact for most patch
Compliant with Bellcore GR-910-CORE
Compliant with ROHS and IEC
High precision attenuation value
Low additional loss
High durability
High reliability and stability
Connector type: FC, SC, LC, ST, FC/SC or other type

Application

Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP

Technical Parameter

Return Loss	≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)
Attenuation Tolerance(dB)	1-5dB＜±0.5 dB
	5-10dB＜±10%
	11-25dB＜±5%
Operating Wavelength(nm)	1310±10nm
	1550±10nm
	1310 and 1550±10nm
Operating Temperature(℃)	-40℃～+75℃

Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB 0
