Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua

Ürünler

fiber optik sonlandırma kutusu

SFP modülü

Bizimle İletişim

sales@yingdapc.cn

+86 18688982406

Şimdi iletişime geçin

Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua

Adedi:	1000pcs
fiyat:	0.04USD-2.15USD
Standart paketleme:	50cs / box
Delivery period:	5 working days
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	200km/ month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO,SGS

Model Number

AD-LCM3-04

Fiber count:

quad 4 fibers

connector material:

plastic

adapter color:

aqua, blue,green

sleeve material:

ceramic

fiber type:

single-mode, multimode

polish mode:

UPC, SPC, APC

working temperature:

-40 ~ +85 °C

wavelength:

1310nm/1550NM/850NM

house material:

PBT / ABS

connector:

flange:

no have

application:

adapter panel, ODF frame, rack, cabinet, closure etc

Ürün Adı:

mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti

Vurgulamak:

Fiber optik bağlantı

Fiber optik adaptörü

Ürün Tanımı

Fiber Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua Fiber Adapter

Description

Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.

This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.

Additionally, these couplers can be used with PC or UPC style fiber connectors.

Simplex, duplex and quad adapters are available in plastic, with or without flanges, and in horizontal and

vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options

available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:

blue, beige, aqua, green,etc.

Features

Insertion loss <0.2dB
Durability >1000 times
Used to connect either PC or UPC polished SC Fiber cables
Plastic body provides a light weight yet durable solution
Stainless steel mounting clips allow for easy snap in installation
Ceramic alignment sleeve supports Single mode applications
100% test in factory

Specification

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

Order information

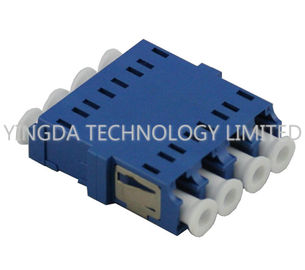

LC Quad Singlemode Adapter w/o flange (blue)

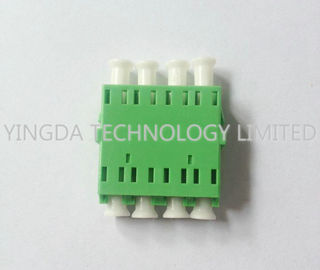

LC/APC Quad Singlemode Adapter w/o flange (green)

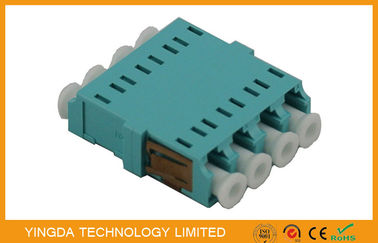

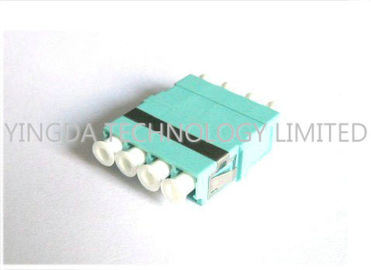

LC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
LC Quad Multimode Adapter w/o flange (beige)

More product show

Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua 0

LC duplex short flange, no ear LC SM MM OM3 fiber optic adapter can be choosed too, check below:

Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua 1
