ST , SC , MT-RJ- or LC - type Fiber Optic Adapter , Standard Square Connector

Adedi:	1000pcs
fiyat:	0.04USD-2.15USD
Standart paketleme:	20 pc / box
Teslim süresi:	5 working days
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	200km/ month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO,SGS

Model Number

AD-SCS-02

Fiber count:

duplex

connector material:

plastic

adapter color:

sleeve material:

ceramic

fiber type:

single-mode

polish mode:

UPC, SPC

working temperature:

-40 ~ +85 °C

wavelength:

1310nm

house material:

PBT / ABS

connector:

Ürün Adı:

mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti

Vurgulamak:

Fiber optik adaptörü

çıplak fiber adaptörü

Ürün Tanımı

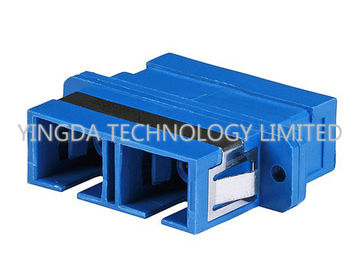

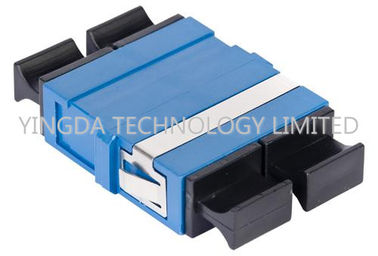

SC/UPC single-mode duplex optic fiber adapter, SC Duplex Coupler Adapter

Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a

cable to cable fiber connection.. Yingda connector adapters are used to connect the same type

fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.

We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ

style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber

adapter plates for ST-, SC-, MT-RJ- or LC-type connections.

SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.

Features

Conforms to Telcordia GR-326-CORE standard
Conforms to YD/T-1272.3 standard
Good interchangeability,low insertion loss
Easy to use,plug
Application: FTTH,CATV,Telecommunications,etc
100% test in factory
High quality blister box package
Customer label with logo ok
Insertion loss<0.2dB

Specification

Wavelength	1200-1600nm
Polish method	UPC,PC,APC
Insertion loss	≤0.2dB
Max.Insertion loss	≤0.3dB
Repeatability	≤0.1dB
Interchangeability	≤0.2dB
Sleeve material	Cermic or metal
Working/Storage temperature	-40~+85℃
Matings time	>1000

Order information

Connector type: SC/UPC, SC/PC, SC/APC
Connector color: beige, blue, green, aqua, purple
Fiber type: SM, OM1, OM2, OM3, OM4
Type: simplex, duplex

ST , SC , MT-RJ- or LC - type Fiber Optic Adapter , Standard Square Connector 0
