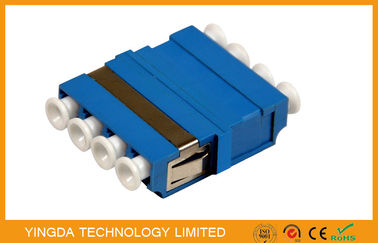

FTTH CATV LC/PC Fiber Optic Adapter 4 Way Blue , SM / MM LC Optical Adapter

Adedi:	1000 pcs
fiyat:	0.04USD-2.15USD
Standart paketleme:	20 pcs / blister box
Teslim süresi:	3working days
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	100000pcs/month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO,SGS

Model Number

AD-LC-SM-Q4

Fiber count:

4 Core, quad fibers

connector material:

plastic

connector color:

sleeve material:

ceramic

fiber type:

singlemode

polish mode:

UPC SPC

insertion loss:

<0.2dB

temperature:

-40~+80 °C

Ürün Adı:

mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti

Vurgulamak:

Fiber optik bağlantı

Fiber optik adaptörü

Ürün Tanımı

Fiber Optic Adapter LC 4Way Blue, LC Optical Adapter, LC/PC Adpater SM / MM

Features

Conforms to Telcordia GR-326-CORE standard
Conforms to YD/T-1272.3 standard
Good interchangeability,low insertion loss
Easy to use,plug
Application: FTTH,CATV,Telecommunications,etc

This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from highgrade plastic and has been designed and engineered for durability

and a long life.

Adapter Drawing

FTTH CATV LC/PC Fiber Optic Adapter 4 Way Blue , SM / MM LC Optical Adapter 0

Material List:

Sleeve: Ceramic or PB
Housing: PC , Flammability UL94 V-0
Dust cap: PVC, Flammability UL94 V-0
Clip:s tainless steel

Optical characteristic

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

Environment and Mechanical Properties

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

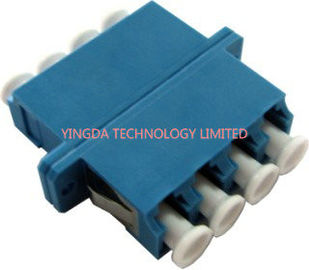

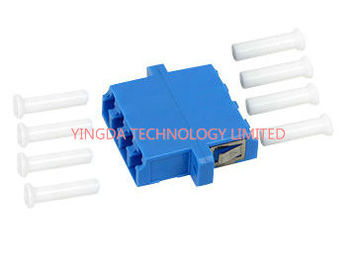

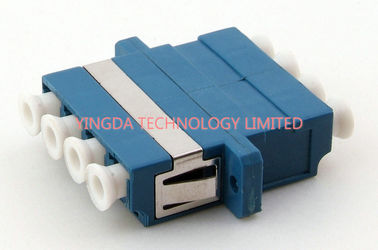

More product show:

FTTH CATV LC/PC Fiber Optic Adapter 4 Way Blue , SM / MM LC Optical Adapter 1

Product application occasions: FTTH CATV LC/PC Fiber Optic Adapter 4 Way Blue , SM / MM LC Optical Adapter 5

Puanlar ve İncelemeler

Genel Değerlendirme

5.0

Bu tedarikçi için 50 incelemeye göre

Derecelendirme Anlık Görüntüsü

Aşağıdaki tüm oyların dağılımıdır

5 yıldızlar

4 yıldızlar

3 yıldızlar

2 yıldızlar

1 yıldızlar

Tüm Yorumlar

1*x

Chile Aug 23.2023

Yardımsever (9)

Good quality, IP65 waterproof. will continue to cooperate with YINGDA

D*e

Venezuela Sep 26.2022

Yardımsever (24)

All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!

Mini Type Dome Fiber Optic Splice Closure for 48 Fiber Cable Joint closure

Turkey Jan 28.2022

Yardımsever (2)

The team helped me from start to finish with this special order. Always updated on the status. With so many bad issues in the past, i was worried when buying items from alibaba, but for this one it went 100% ok. The order arrived as discussed and all perfect. Thank you.
