Fiber optik adaptörü
Created with Pixso. LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor

LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor

Marka Adı: YINGDA
Model Numarası: AD-LC-DX
Adedi: 500pcs
fiyat: 0.04USD-2.15USD
Teslim Zamanı: 5 working days
Ödeme Şartları: T/T or western Union
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
ISO,SGS
Fiber count:
duplex
connector material:
plastic
adapter color:
beige
sleeve material:
ceramic
fiber type:
mulitmode 50/125um
polish mode:
PC
working temperature:
-40 ~ +80 °C
wavelength:
850nm
appliction:
adapter panel, LGX panel, rack mount panel
Ürün Adı:
mpo'dan mpo'ya kablo, mpo'dan lc'ye kablo, mtp optik konektör, mtp kaseti
Packaging Details:
50 pc / box
Supply Ability:
200km/ month
Vurgulamak:

Fiber optik bağlantı

,

Fiber optik adaptörü

Ürün Tanımı

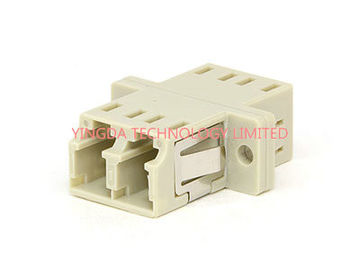

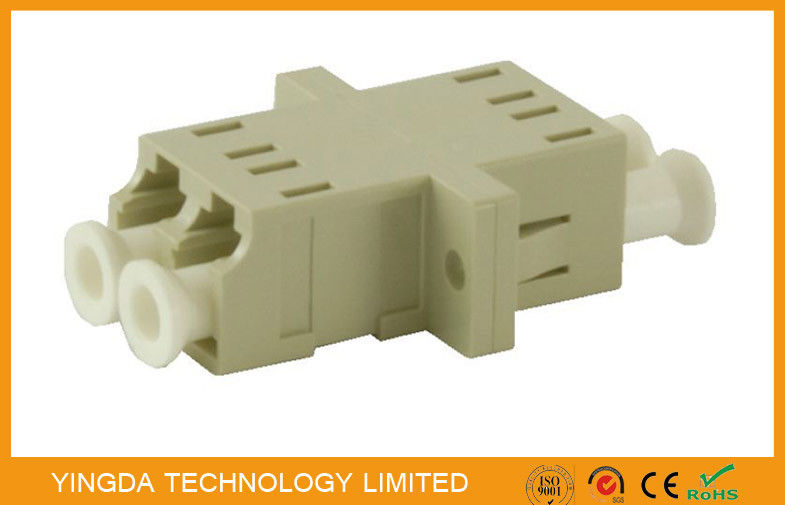

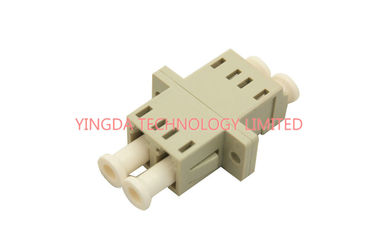

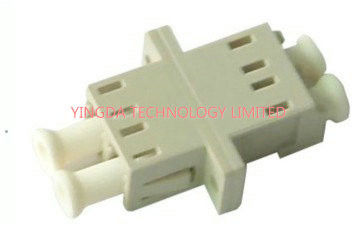

LC Multimode Adapter Coupler Duplex Ceramic Ferrule, LC Fiber Adaptor





Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be

 inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.



Adapter Structure



LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 0



Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall





Application

  • CATV network, FTTH, Telecommunication,etc



Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85





Order information



  1. Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
  5. Polish: UPC PC APC SPC



LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 1LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 2LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 3LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 4LC Multimode Fiber Optic Adapter Coupler Duplex Ceramic Ferrule , LC Fiber Adaptor 5
