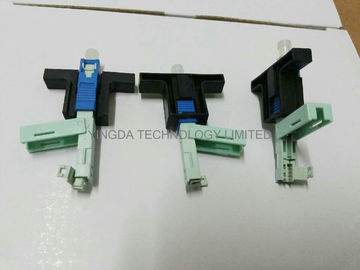

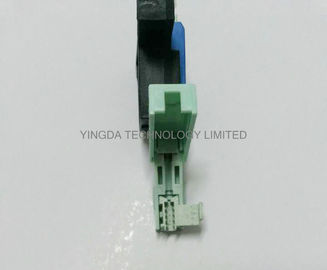

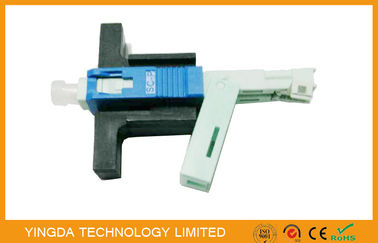

Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover

Adedi:	500PCS
fiyat:	0.19USD-0.72USD
Standart paketleme:	1pc /plastic bag, 10pcs/bigger plastic bag, then 100pcs/box, 1000pcs/ carton
Delivery period:	5 working days after received your payment
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	500,000pcs per month

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

ISO SGS ROHS

Model Number

YD-FIC-SC/UPC-E

material:

Plastic

house color:

fiber type:

single mode

back cover:

yes, black

insertion loss:

<0.3dB

return loss:

>45dB

pack:

plastic bag and box

total length:

Ürün Adı:

sc fiber konnektör,sc fiber optik konnektör,fiber kablo konnektörleri,sahada kurulabilir konnektör

Vurgulamak:

quick assembly connector

FTTH connector

Ürün Tanımı

Field Mountable Fiber Optical Connector (FMC), Mechanical SC Connector With Back Cover

Sell point:

1. SC / PC, cover type, the total length 53mm

2. Apply to 2mm* 3mm drop fiber cable

3. Ceramic C-groove structure, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥45dB

6. No need epoxy or polished, field-installable, factory embedded fiber

Description

SC / PC Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector

used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and

mechanical specification meets the standard optical fiber connector.

It is designed for high quality and high efficiency for installation the structure of crimping position

is a unique design, and need not gluing, polishing neither any consumables. Adopting fiber

pre-installed structure, and convenient for field installation.

Features

Precise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4
Repeatable times is no less than 50 times;
Long life span design, more than 30 years.
Provide Open flow and Pre-cast type of products
Adopting fiber pre-installed structure
Convenient for field installation
No epoxy or polishing required, easy assembly in the field
Fiber termination can be reset, save time and energy ,reduce scrap
No need special too, readily available

Specification

Type	Parameters
Insertion loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≤ -40dB
Bare fiber strength	>5N
Clad strength	>10N
Tension	>50N
Mechanical durability (500times)	IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature	5 ºC to +70 ºC

Application

Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber / Home (FTTH) applications
Repair/replacement requirements
Equipment test leads
