SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof

Adedi:	500PCS
fiyat:	0.19USD-0.72USD
Standart paketleme:	10pcs / blister box,1200pcs / carton box
Teslim süresi:	3-5 working days after get payment
Ödeme yöntemi:	T/T or western Union
Tedarik Kapasitesi:	10,000pcs per day

Ayrıntılı Bilgiler

Ürün Tanımı

Puanlar ve İncelemeler

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

YINGDA

Sertifika

Model Number

YD-FIC-SCA-A

Ürün Adı:

sc fiber konnektör,sc fiber optik konnektör,fiber kablo konnektörleri,sahada kurulabilir konnektör

Vurgulamak:

quick assembly connector

mechanical splicer

Ürün Tanımı

FTTH SC FC LC ST Fast Assembly Mechanical Connector, Field Installable Connector SC / APC

Sell point:

1. pre-polished and curing ferrule

2. pre-embedded fiber optic fiber

3. Length: 55mm

4. Cable stripper length:

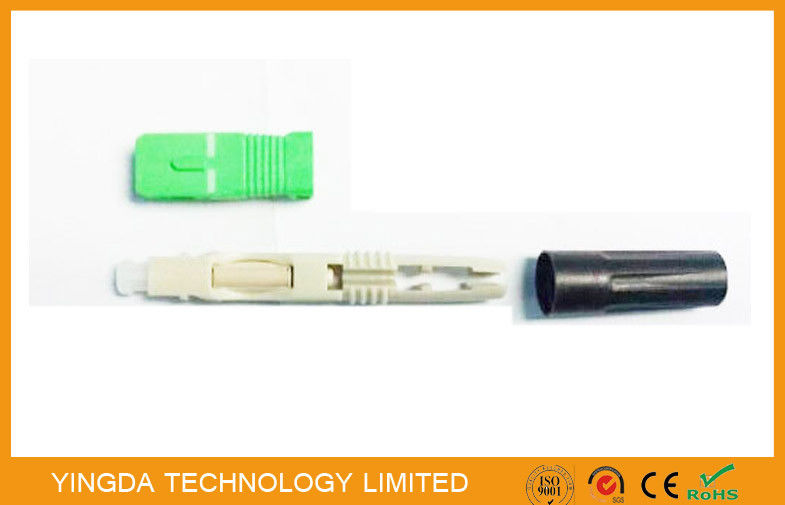

SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof 0

Description

Quick connector is a kind of connector, it is used in field wiring operation and FTTH project

where need fast and stable connection. Because it has embedded fiber and pre-polished

and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help

to installation, maintenance,repair and fiber to the home for engineers. The pre-embedded

fiber and pre-polished and cured ferrule ensures the ferrule end face good quality, and

effectively protect the user equipment interface from damage, reduce the connection

attenuation loss.

Features

1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.

Application

FTTH network
CATV network
Fiber Optic Telecommunication
Fiber Data Transmission
Fiber Optic Test
Fiber Optic Distribution Frame use

Connector Structure

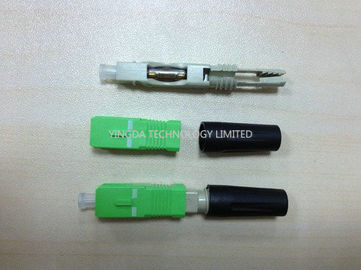

SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof 1

Specification

Applicable for	3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable
Optical fiber diameter	125um (G652D,G657A1,G657A2)
Tight butter diameter	250um
Fiber mode	Single mode
Operation time	About 60s (no fiber cut)
Insertion loss	≤0.3dB(1310nm &1550nm)
Return loss	≤-40dB
Fastening strength of naked fiber	＞5N
Fastening strength of naked fiber holder	＞10N
Tensile strength	＞50N
Using temperature	-45～+80℃
On-line tensile strength(20N)	△IL≤0.2dB △RL≤5dB
Mechanical durability(500times)	△IL≤0.2dB △RL≤5dB
Drop-off test(drop-off height 4m,once per direction,totally 3times)	△IL≤0.2dB △RL≤5dB

Order information

Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
Cable type: drop cable , indoor cable 0.9mm, 2.0mm
Connector color: Blue,Green, Black
Fiber type: G652D, G657A1, G657A2

Product Length:

Total 55mm (boot- top of the dust cap)

boot to top of the ferrule: 53mm

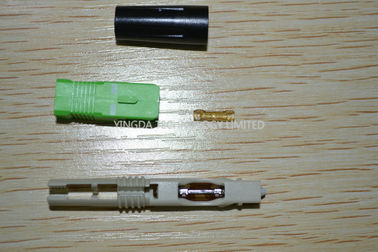

SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof 2

Two package metods:

SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof 3
