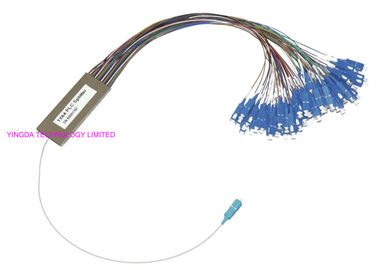

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors

Name: Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1x64 PLC Splitter
Price: 2.10 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	1x64 PLC Splitter
Adedi:	100 pcs
fiyat:	1.1USD-4.58USD
Teslim Zamanı:	5-8days after payment

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO

Standard:

Telcordia GR-1221 and GR-1209

split ratio:

1X64 mini splitter

tube dimension:

100*40*6mm

cable diameter:

0.9mm

connector:

SC/UPC coupler

cable color:

input white, output: colorful

fiber type:

single mode G657A1

insertion loss:

20.8dB

Uniformity (Max.):

2.odB

wavelength:

1260 - 1650 nm

PDL(Max.):

0.4dB

Packaging Details:

2pc/ box, 20pcs/carton box

Supply Ability:

10,000 pcs per month

Vurgulamak:

fbt coupler

PLC splitter

Ürün Tanımı

High Density 1 to 64 Mini Splitter PLC Mini Module Steel Tube, 1X64 Fiber Optic PLC Splitter SC Blue Connectors

Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size,
high reliability, wide operating wavelength range and good channel-to-channel uniformity,
and is widely used in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for
specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-
1999 requirements.

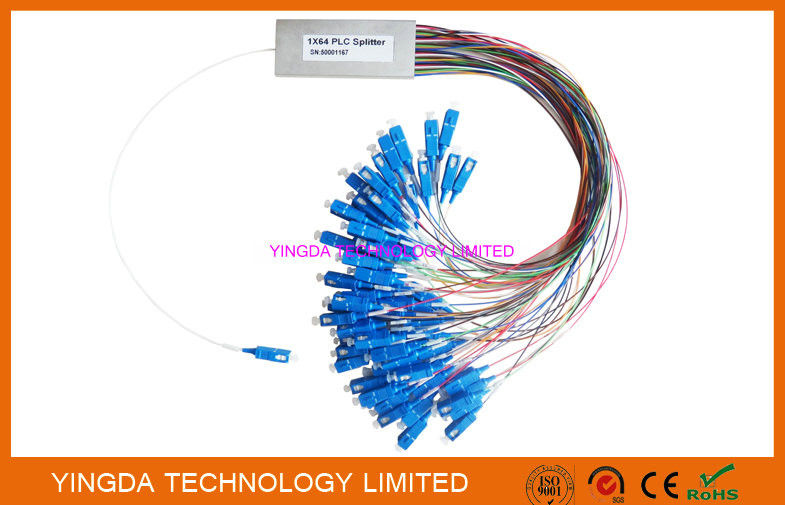

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors 0

Features

Bidirectional, Compact size
Wide wavelength range
Low insertion loss, Low PDL and High reliability
High return loss and Good repeatability
Excellent channel-to-channel uniformity
Telcordia GR-1221-Core Compliant
1x2 ,1X4,1X8,..,1X128 configurations

Applications

LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
GPON, EPON,CATV System
Fiber Optic Test Equipment
Data-base Transmit Broadband Net

Technical Specs for PLC Splitter with Fiber Optic Connectors

1xN splitter

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.2	≤7.6	≤10.7	≤14.0	≤17.2	≤20.8	≤24.0
P-Grade Insertion Loss(dB)	≤4.0	≤7.4	≤10.5	≤13.8	≤17.0	≤20.4	≤23.7
Uniformity(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

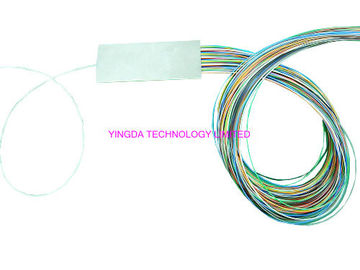

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors 1

Ordering Information

PLCS	-	-	-	-	-	-	-
	Structure	Fiber Type	Package	Input	Output	Length	Connector
Structure	0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64
Fiber Type	1=G652D, 2=G657A1, 3=G657A2
Package Dimension	A1, A2,...A12, D, E, F, K, U, G, C, T, R, X
Input Type	B=250μm Bare Fiber ,L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter
Output Type	B=250μm Bare Fiber , L=900µm Loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter
Pigtail Length	05=0.5m, 10=1.0m, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=Others
Connector Type	FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPO=MPO/UPC, MPA=MPO/APC, FU/FA=FC/UPC input / FC/APC output, 00=None, X=Others

YINGDA WORKSHOP

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors 3
