LC Duplex Optical Fiber Patch Cord FTTA Fiber Optic Jumpers ODC Male Connector

Name: LC Duplex Optical Fiber Patch Cord FTTA Fiber Optic Jumpers ODC Male Connector
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ODC male
Price: 14.36 USD
Availability: InStock

Marka Adı:	YINGDA
Model Numarası:	ODC male
Adedi:	10pcs
fiyat:	0.36USD-30USD

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO SGS CE ROHS

application:

fiber to the antenna,defense,Industry, Aerospace

cable:

outoor waterproof

cable jacket:

black LSZH

connector:

LC FC ST SC available

fiber count:

2 cores

length:

on customer request

logo:

OEM

label:

OEM

Ürün Adı:

Fiber kablo, fiber optik ara kablolar, fiber optik ara kablolar, fiber optik atlama telleri, fiber o

Packaging Details:

1pc/pack

Vurgulamak:

fiber optic patch cable

fiber optic jumper

Ürün Tanımı

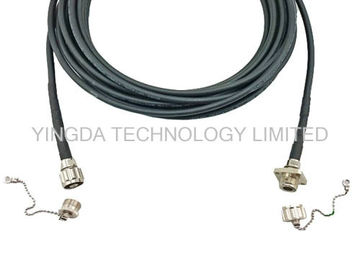

LC Duplex Optical Fiber Patch Cord FTTA Fiber Optic Jumpers ODC Male Connector

Description:

The ODC Connector together with the far transmission cable, are becoming the standard interface

specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.

The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection

class IP67. They are well suited for Industrial and Aerospace and Defense applications.

Application

Indoor and Outdoor applications
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Railway signal control.
Intelligent substation

Feature:

Screwed locking mechanism, confirm the connection is long-term and reliable.
Guide structure, can be installed blindly, simply and quickly.
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps.
Compact appearance, robust and flexible.
Sealing design through wall.
Reduce the times of splicing.

ODC Cable structure

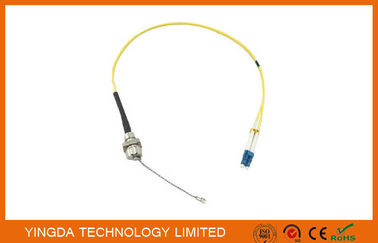

LC Duplex Optical Fiber Patch Cord FTTA Fiber Optic Jumpers ODC Male Connector 0

Specification

Insertion loss	≤0.8dB
Repeat ability	≤0.5dB
Fiber core	2
Mating times	≥500N
Working temperature	-40~+85°C

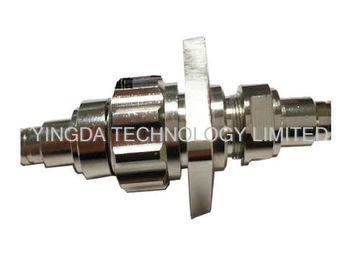

LC Duplex Optical Fiber Patch Cord FTTA Fiber Optic Jumpers ODC Male Connector 1
