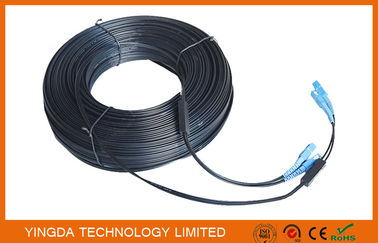

Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xApplication | FTTH indoor wiring | Connector | SC / UPC |
---|---|---|---|
fiber count | 2 core | fiber type | G657A2 |
Cable sheath | LSZH | Cable length | 70 meters |
Cable color | black / white | insertion loss | < 0.3dB |
Cable strength member | Steel wire | drop cable diameter | 2.0*5.0 mm |
Vurgulamak | fiber optic patch cable,fiber optic jumper |
Black 2 Core Single Mode Fiber Patch Cord SC - SC 657A2 Simplex 70M With Steel Wire
The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP are placed at the
two sides. A steel wire as the additional strength member is also applied,then the cable is completed with
a black or color LSZH Sheath.
Features
- Special high bending radius optical fiber, provides wider bandwidth, enhance the network
- transmission performance;
- Two parallel FRP or metallic strength member so that the cable has good compression
- performance, protect the fiber;
- Simple structure, light weight, strong practicability;
- The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
- Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
- environmental protection.
- Can be matched with a plurality of field connector, can be terminated at site.
- Due to its soft and light, it is widely used in access network; so it is also called indoor access
- network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.
Application
- For indoor /outdoor wiring, terminal user directly use cable;
- Building introducing (drop) cable;
- FTTH indoor outdoor distribution
Implementation standards
- YD/T1997-2009 access network butterfly optical drop cable
Specification
Item |
SC FC ST LC drop cable PATCH CORD |
||
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
