Single Mode FTTH Drop Cable , FRP Non - Metallic Strength 2 Core Fiber Optic Cable
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xfiber count | 2 Cores | strength member | FRP non-metallic |
---|---|---|---|

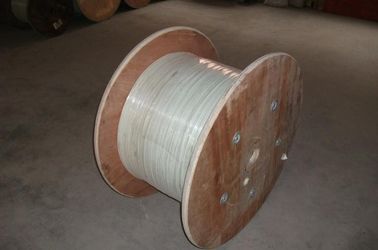

pack | 2KM / drum(reel) or 3km/ drum, 4km/drum | Name | butterfly figure 8 indoor drop cable |
cable color | white | cable shape | square / flat |

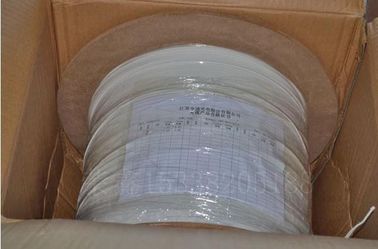

Fiber type | G657A1 G657A2 G652D | Package | wooden drum and carton box |
outer jacket | LSZH | ||
Vurgulamak | FTTH Fiber optik kablo,Fiber optik damla kablo |
FTTH Drop Cable Indoor Single Mode 2 Cores Fiber Optic Cable FRP Non-Metallic Strength
Description
Butterfly fiber optic cable is a cable designed specifically for FTTH which have both indoor and
outdoor optical cable features. It adopts double reinforcement figure 8 structure, can directly drop
into the building household from the fiber optic splice closure. Particularly it suitable to use together
with fast connector(field installation connector), mechanical splice; also it can be separate the
suspended fiber core and then splice with others.

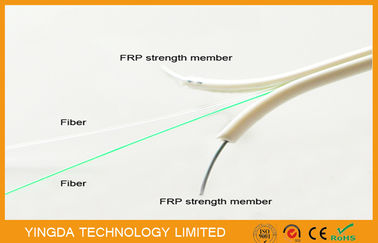

Cable structure
Features
- Special high bending radius fiber, provides wider bandwidth, enhance network transmission
- characteristics, easily reached 100M /S, realize broadband, television and telephone triple
- play.
- Two parallel reinforcement members ensure fiber optic cable with good compression perform
- ance, protect the fiber.
- Simple structure, light weight, strong practicability.
- The unique groove design, easy separation, convenient connection, simplify the installation
- and maintenance.
- Low smoke halogen-free flame retardant sheath, environmental protection
- Optical properties of <0.34dB: 1310nm, 1550nm<0.21dB
Technical parameters
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temperature (°C) |
|||
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||
GJXFH-01 |
1 |
1.6*2.0 |
5 |
40 |
80 |
500 |
1000 |
30D |
15D |
-20~+60 |
GJXFH-01 |
1 |
2.0*3.0 |
8 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
GJXFH-02 |
2 |
2.0*3.0 |
8.5 |
40 |
0 |
500 |
1000 |
30D |
15D |
|
GJXFH-04 |
4 |
2.0*3.0 |
9 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
GJXFH-06 |
6 |
3.0*4.0 |
14 |
45 |
85 |
500 |
1000 |
30D |
15D |
|
GJXFH-08 |
8 |
3.0*4.0 |
16 |
50 |
90 |
500 |
1000 |
30D |
15D |
|
GJXFH-12 |
12 |
3.0*4.0 |
19 |
55 |
95 |
500 |
1000 |
30D |
15D |
|
|
||||||||||
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||
Jacket material |
PE |
LSZH |
||||||||
Features: |
||||||||||
Special low beng sensitivity fiber provodes high bandwidth |
||||||||||
Two parallel FRP strength member ensures good performance of crush resistance to protect the fiber |
||||||||||
Simplex structure, light weight,high practicability |
||||||||||
Low smoke zero halogen and flame retardant sheath |
