Fiber optik plc splitter
Created with Pixso. SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH

Marka Adı: YINGDA
Model Numarası: 2x8 splitter
Adedi: 100 pcs
fiyat: 1.1USD-4.58USD
Teslim Zamanı: 5-8days after payment
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
ISO
split ratio:
2x8 PLC splitter
connector:
SC/UPC coupler
fiber type:
9/125UM G657A1
insertion loss:
10.6dB
Uniformity (Max.):
1.0dB
wavelength:
1260 - 1650 nm
PDL(Max.):
0.3dB
Standard:
Telcordia GR-1221 and GR-1209
tube dimension:
4*7*60mm
cable diameter:
0.9mm
cable color:
input white, output:Blue/Orange/Green/Brown
Packaging Details:
2pc/ box, 20pcs/carton box
Supply Ability:
10,000 pcs per month
Vurgulamak:

Fiber optik bölücü

,

fbt coupler

Ürün Tanımı

Fiber Optic PLC Splitter 2X8 Mini Modules 900um 9/125um SM 1Meter G657A LSZH SC/UPC Loose Tube





Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity.



Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.



Features

  • Low insertion loss and PDL
  • High channel number
  • Compact size
  • High reliability
  • Wide operating wavelength and temperature range
  • Excellent channel uniformity
  • Conforms to Telecordia GR-1221 and GR-1209



Technical Parameters



SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 0

                                                 Steel tube Dimension





Optical Performance   Unit Specification
Insertion Loss (without Connector) MAX dB 10.6
Insertion Loss of Connector MAX dB None
Insertion Loss of Adapter MAX dB None
Uniformity Loss MAX dB 1.0
Polarization Dependent Loss MAX dB 0.3
Wavelength Bandwidth MIN nm 1260~1650
Return Loss (All Port) MIN dB 55
Directivity MIN dB 55
Operating Temperature oC dB -40~85

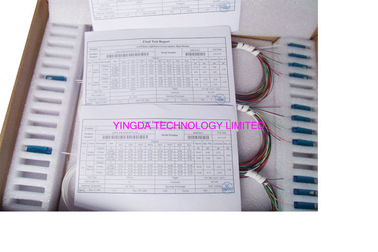

Individual Test Data Sheet Format Hardcopy 1310, 1490, 1550nm ILUFPDL
Fiber Type - G657A1
Fiber Color - Input: Transparent
Output: 2*4 Color (Blue/Orange/Green/Brown)
Tube Type - Φ0.9mm, Hytrel
Tube Color - Input: White
Output: White
PLC Splitter Packing - Stainless Steel Tube
Package Diemension - 4*7*60(mm)



Product details

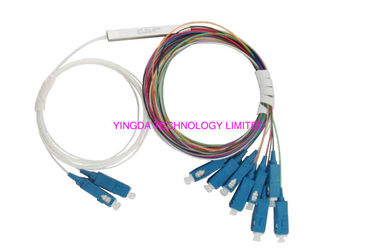

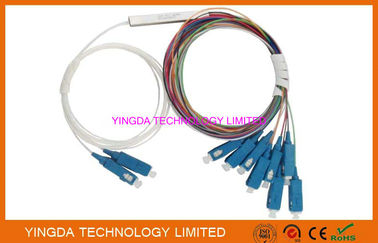

steel tube: 60*7*4mm,mini module,  input and putput 0.9mm tube

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 1

  • input and output white color, can be customized
  • cable length can be 1 meter, 1.5meter or customized
  • connector can be: SC FC ST LC...ETC
  • Polish method: upc apc

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 2

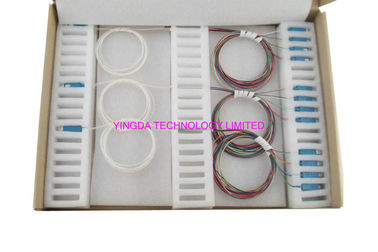

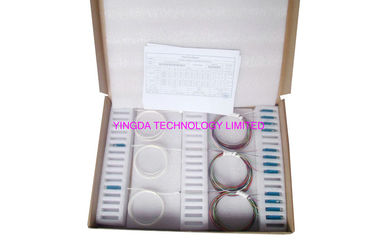

package: 1pc/ blister box, or  4pcs/box

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 3

Order information



Type Package size Port Fiber Type Input/output Fiber length connector
PLCS BF=bare fiber
FO=fan-out
MD=module
MB=metal box
01X02
01x04
01x08
……
02x16
02x32
02x64
0=G652D
1=G657A
C=Customize
1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube
1=1m
2=1.5m
C=Customize

0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize





YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.



SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 4 SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 5

SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 6 SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH 7
